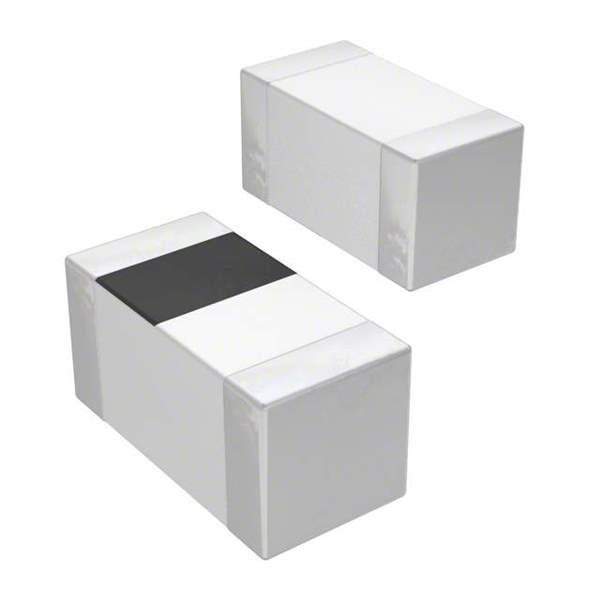

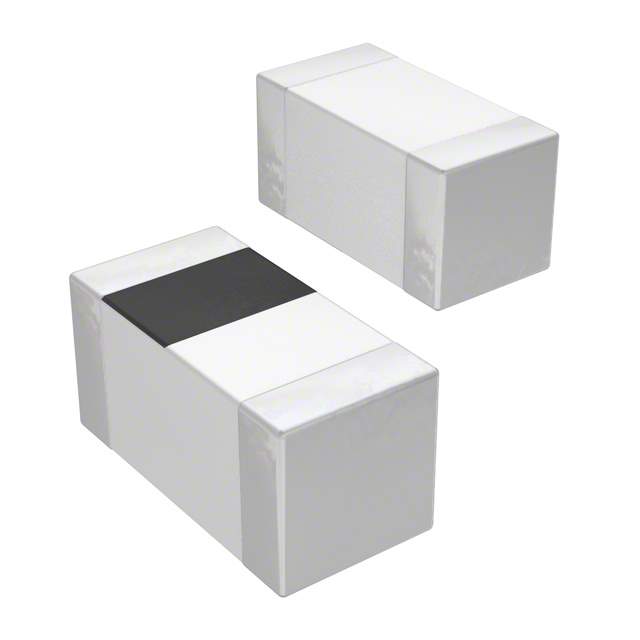

Same model may have multiple batches, images only for reference.

CIH10T12NJNC

Name: CIH10T12NJNC
Brand: Samsung
SKU: 1052014
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CIH10T12NJNC
Manufacturer	Samsung
Catalog	Fixed Inductors
Description	FIXED IND 12NH 600MA 280MOHM SMD / 12 nH Unshielded Multilayer Inductor 600 mA 280mOhm Max 0603 (1608 Metric)
Datasheet	CIH10T12NJNC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Samsung Electro-Mechanics
Series	CIH10T
Package	Tape & Reel
Product Status	Obsolete
Type	Multilayer
Inductance	12 nH
Tolerance	±5%
Current Rating (Amps)	600 mA
Shielding	Unshielded
DC Resistance (DCR)	280mOhm Max
Q @ Freq	12 @ 100MHz
Frequency - Self Resonant	2.6GHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting	SMD (SMT)
Package / Case	0603 (1608 Metric)
Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	1276-6307-1,1276-6307-2,1276-6307-6
Standard Package	4,000
Win Source Part Number	1052014-CIH10T12NJNC
Ultra Librarian 3D Model	Ultra Librarian CIH10T12NJNC CAD Model

Alternative Products

Description

The CIH10T series from Samsung Electro-Mechanics is a multilayer inductor designed for fixed inductance applications.

Package: Tape & reel
Shielding: Unshielded
Inductance: 12nH
Tolerance: ±5%
Q @ Freq: 12 @ 100MHz
Frequency - Self-Resonant: 2.6GHz
Package/Case Size: 0603 (1608 Metric)
DC Resistance (DCR): 280mOhm Max
Operating Temperature Range: -55°C ~ 125°C
ECCN: EAR99
REACH: Unaffected
HTSUS Code: 8504.50.8000
Status: Obsolete
