Same model may have multiple batches, images only for reference.

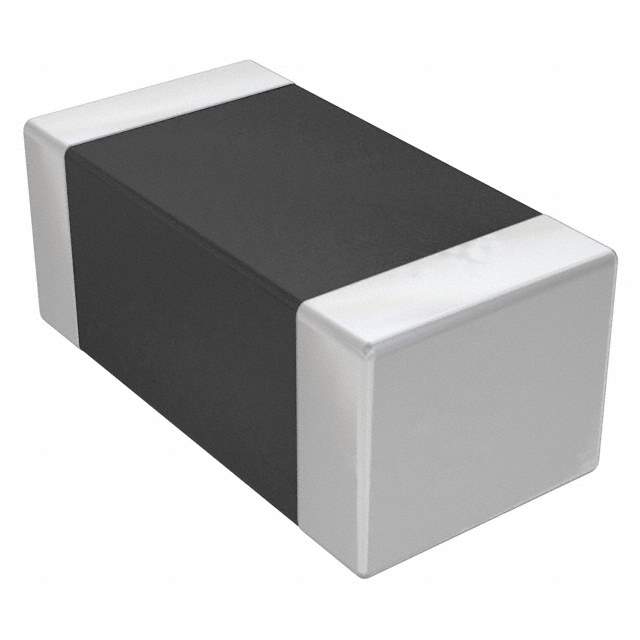

742792117 Real Image
Same model may have multiple batches, images only for reference.

742792117

Part No 742792117
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 48 OHM 1206 1LN
Datasheet
742792117 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Wurth Electronics Inc
Series WE-CBF
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 48 Ohms @ 100 MHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 5mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Height (Max) 0.051" (1.30mm)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857166-742792117
Ultra Librarian 3D Model Ultra Librarian 742792117 CAD Model

Description

The WE-CBF is a ferrite bead chip filter designed for signal line applications.

  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height: 0.051" (1.30mm)
  • Maximum Current Rating: 6A
  • DC Resistance (DCR): 5mOhm
  • Impedance @ 100 MHz: 48 Ohms
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Standard Package: 3,000 pcs
  • Operating Temperature: -55°C to 125°C
  • Product Status: Active
  • Manufacturer: Wurth Electronics Inc
