Same model may have multiple batches, images only for reference.

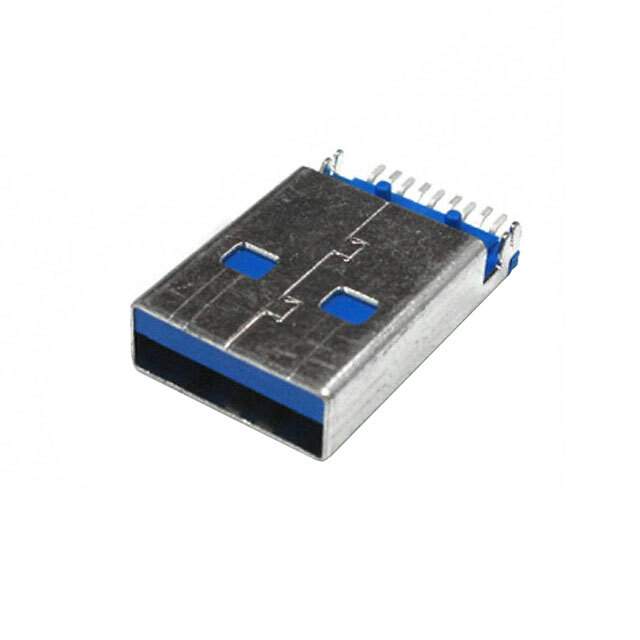

692112030100 Real Image
Same model may have multiple batches, images only for reference.

692112030100

Part No 692112030100
Manufacturer Wurth Electronics Inc
Catalog USB, DVI, HDMI Connectors
Datasheet
692112030100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Würth Elektronik
Series WR-COM
Package Tray
Connector Type USB-A (USB TYPE-A)
Number of Contacts 9
Gender Plug
Specifications USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Type Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Board Lock
Temperature Range - Operating -20°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.8A
Voltage - Rated 30VAC
Mating Cycles 5000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel
Material Flammability Rating UL94 V-0
Insulation Color Blue
Other Names 732-3157
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285025-692112030100
Ultra Librarian 3D Model Ultra Librarian 692112030100 CAD Model

Description

The Würth Elektronik WR-COM is a USB-A (USB TYPE-A) connector that is designed for use in USB, DVI, HDMI connectors.

  • Contacts: 9
  • Current: 0.25A and 1.8A
  • Rated Voltage: 30VAC
  • Mounting Type: Surface Mount, Right Angle
  • Package: Tray
  • Standard Package: 50
