Same model may have multiple batches, images only for reference.

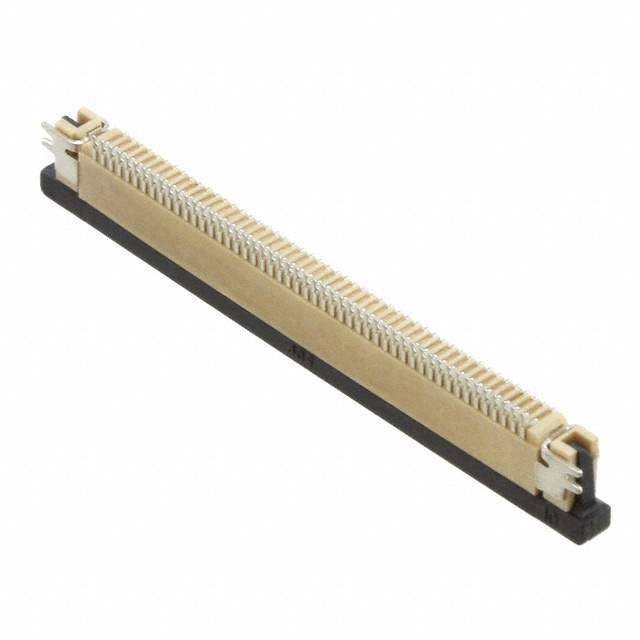

68715014022 Real Image
Same model may have multiple batches, images only for reference.

68715014022

Part No 68715014022
Manufacturer Wurth Electronics Inc
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 50POS 0.5MM R/A
Datasheet
68715014022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Wurth Electronics Inc
Series WR-FPC
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 50
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 100.0µin (2.54µm)
Housing Color Ivory
Actuator Color Black
Mating Cycles 25
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 856969-68715014022
Ultra Librarian 3D Model Ultra Librarian 68715014022 CAD Model

Description

The WR-FPC series from Wurth Electronics Inc is a 50-position FFC, FPC (Flat Flexible) Connector Assembly with a pitch of 0.020" (0.50mm).

  • Positions: 50
  • Pitch: 0.020" (0.50mm)
  • Features: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Voltage Rating: 50V
  • Operating Temperature: -25°C to 85°C
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Package: Tape & Reel
  • Height Above Board: 0.079" (2.00mm)
