Same model may have multiple batches, images only for reference.

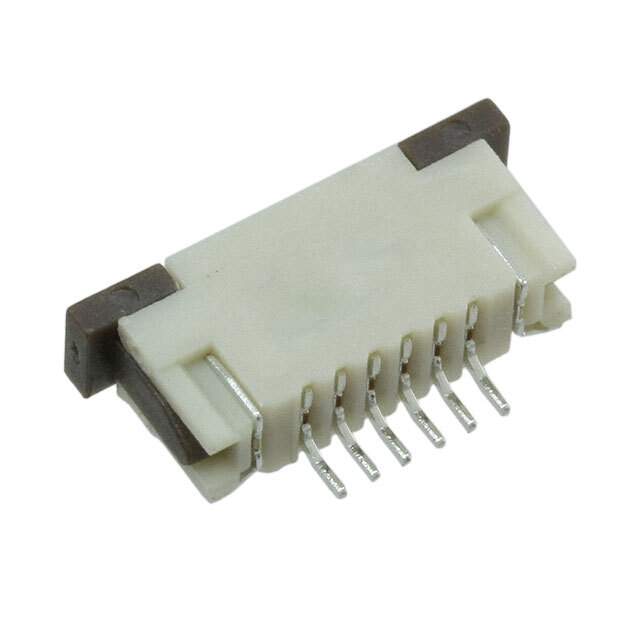

68610614122 Real Image
Same model may have multiple batches, images only for reference.

68610614122

Part No 68610614122
Manufacturer Wurth Electronics Inc
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC TOP 6POS 1MM R/A
Datasheet
68610614122 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Wurth Electronics Inc
Series WR-FPC
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 6
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.29mm ~ 0.34mm
Height Above Board 0.116" (2.95mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS)
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 125V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 100.0µin (2.54µm)
Housing Color Beige
Actuator Color Brown
Mating Cycles 25
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 856966-68610614122
Ultra Librarian 3D Model Ultra Librarian 68610614122 CAD Model

Description

The WR-FPC series is a category of FFC, FPC (Flat Flexible) connectors designed for various applications.

  • Pitch: 0.039" (1.00mm)
  • Number of Positions: 6
  • Features: Solder Retention, Zero Insertion Force (ZIF)
  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Mounting Type: Surface Mount
  • Voltage Rating: 125V
  • Operating Temperature: -25°C to 85°C
  • Product Status: Active
  • Manufacturer: Wurth Electronics Inc.
