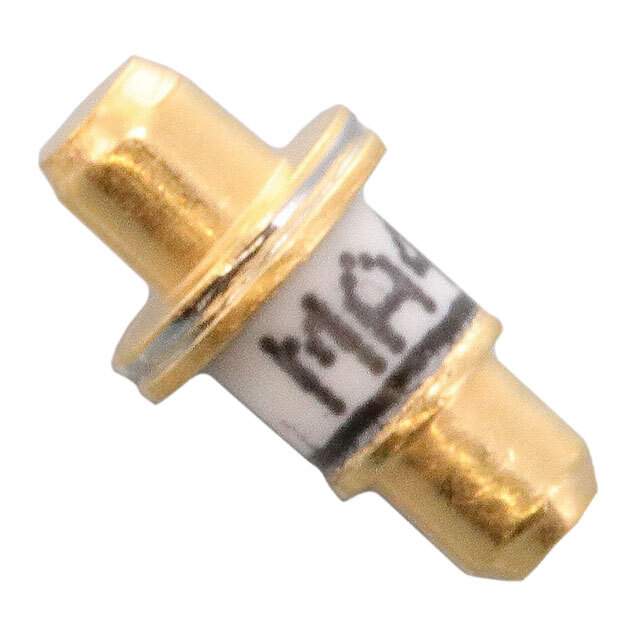

MA4P606-30 Real Image
Same model may have multiple batches, images only for reference.

MA4P606-30

Part No MA4P606-30
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIODE,PIN,CERAMIC_PKG,SI / RF Diode PIN - Single 1000V 10 mA 20 W
Datasheet
MA4P606-30 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr MACOM Technology Solutions
Package Bag
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 1000V
Current - Max 10 mA
Capacitance @ Vr, F 0.8pF @ 100V, 1MHz
Resistance @ If, F 700mOhm @ 100mA, 100MHz
Power Dissipation (Max) 20 W
Temperature Range - Operating -65°C ~ 175°C (TA)
Package / Case Stud
Base Product Number MA4P606
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Other Names 1465-MA4P606-30
Standard Package 50
Win Source Part Number 1018124-MA4P606-30
Ultra Librarian 3D Model Ultra Librarian MA4P606-30 CAD Model

Description

The MA4P606-30 is a PIN - Single diode with a peak reverse voltage of 1000V manufactured by MACOM Technology Solutions.

  • Peak Reverse Voltage: 1000V
  • Maximum Power Dissipation: 20W
  • Diode Type: RF diodes
  • Supply and Demand Status: limited
