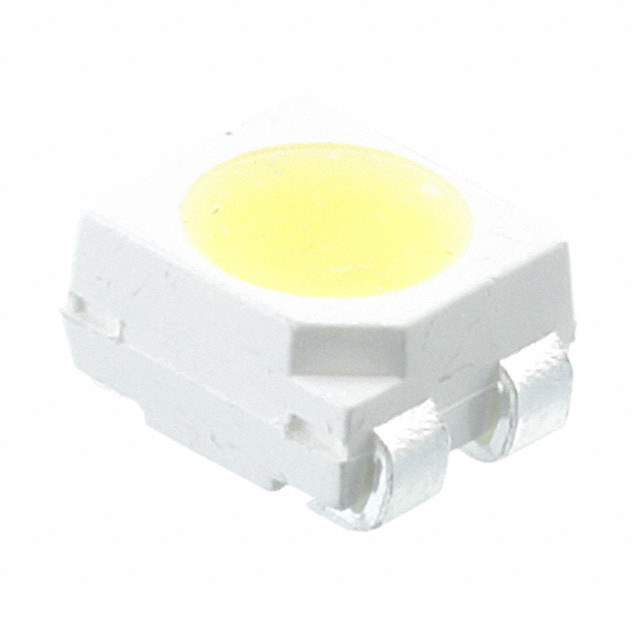

ASMT-QWBF-NKL0E Real Image
Same model may have multiple batches, images only for reference.

ASMT-QWBF-NKL0E

Part No ASMT-QWBF-NKL0E
Manufacturer Broadcom Limited
Catalog LED Lighting - White
Description LED COOL WHITE 7250K 4PLCC / LED Lighting series White, Cool 7250K (4500K ~ 10000K) 3.3V 150mA 120° 4-PLCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Broadcom Limited
Package Tape & Reel
Color White, Cool
CCT (K) 7250K (4500K ~ 10000K)
Flux @ 85°C, Current - Test 42lm
Flux @ 25°C, Current - Test 49lm
Current - Test 150mA
Voltage - Forward (Vf) (Typ) 3.3V
Lumens/Watt @ Current - Test 94 lm/W
Current - Max 150mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 4-PLCC
Supplier Device Package 4-PLCC
Dimension 0.126" L x 0.110" W (3.20mm x 2.80mm)
Height - Seated (Max) 0.083" (2.10mm)
Thermal Resistance of Package 50°C/W
Base Product Number ASMT-QWBF
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-2952-6,516-2952-1,ASMT-QWBF-NKL0E-ND,516-2952-2
Standard Package 2,000
Win Source Part Number 969301-ASMT-QWBF-NKL0E
Ultra Librarian 3D Model Ultra Librarian ASMT-QWBF-NKL0E CAD Model

Description

The Lowpower LP3382SB6F is a product in the optoelectronics category.

  • Product Type: White LED lighting
  • Color: Cool
  • Viewing Angle: 120°
  • Package: Tape and reel
  • Mounting: SMD (SMT)
  • Maximum Height: 0.083"
  • Standard Package: 2,000
