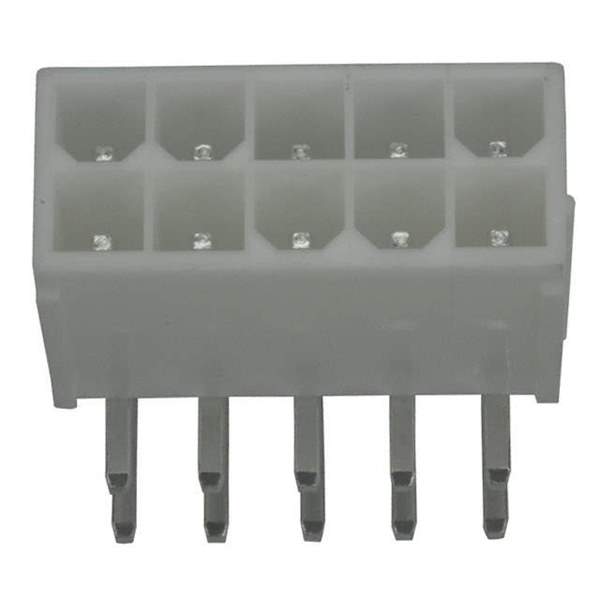

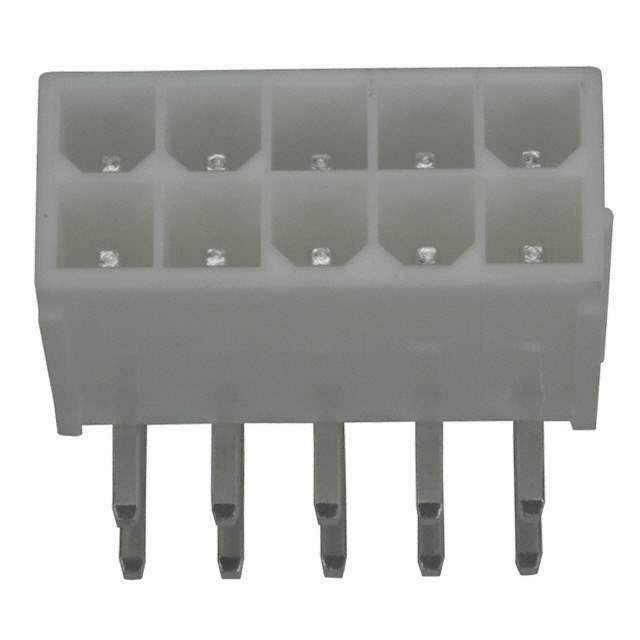

Same model may have multiple batches, images only for reference.

64901029522

Name: 64901029522
Brand: Wurth Electronics Inc
SKU: 1380995
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	64901029522
Manufacturer	Wurth Electronics Inc
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 10POS 4.2MM / Connector Header Through Hole, Right Angle 10 position 0.165" (4.20mm)
Datasheet	64901029522 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Wurth Electronics Inc
Series	WR-MPC4
Package	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.165" (4.20mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.165" (4.20mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	-
Contact Length - Post	0.142" (3.60mm)
Overall Contact Length	-
Insulation Height	0.394" (10.00mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA66), Nylon 6/6
Features	-
Temperature Range - Operating	-40°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	White
Current Rating (Amps)	7A
Voltage Rating	600V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	112 pcs
Win Source Part Number	1380995-64901029522
Ultra Librarian 3D Model	Ultra Librarian 64901029522 CAD Model

Description

The WR-MPC4 connector is a 10-position header designed for board-to-board applications from Wurth Electronics Inc.

Number of Positions: 10
Application: Board-to-Board
Contact Gender: Male Pins
Design: Shrouded with Locking Ramp
Termination: Solder
Pitch: 0.165" (4.20mm)
Insulation Material: Polyamide (PA66) and Nylon 6/6
Flammability Rating: UL94 V-0
Temperature Range: -40°C to 105°C
Package: Tray
Pieces per Package: 112
REACH: Unaffected
Moisture Sensitivity Level: Not Applicable
