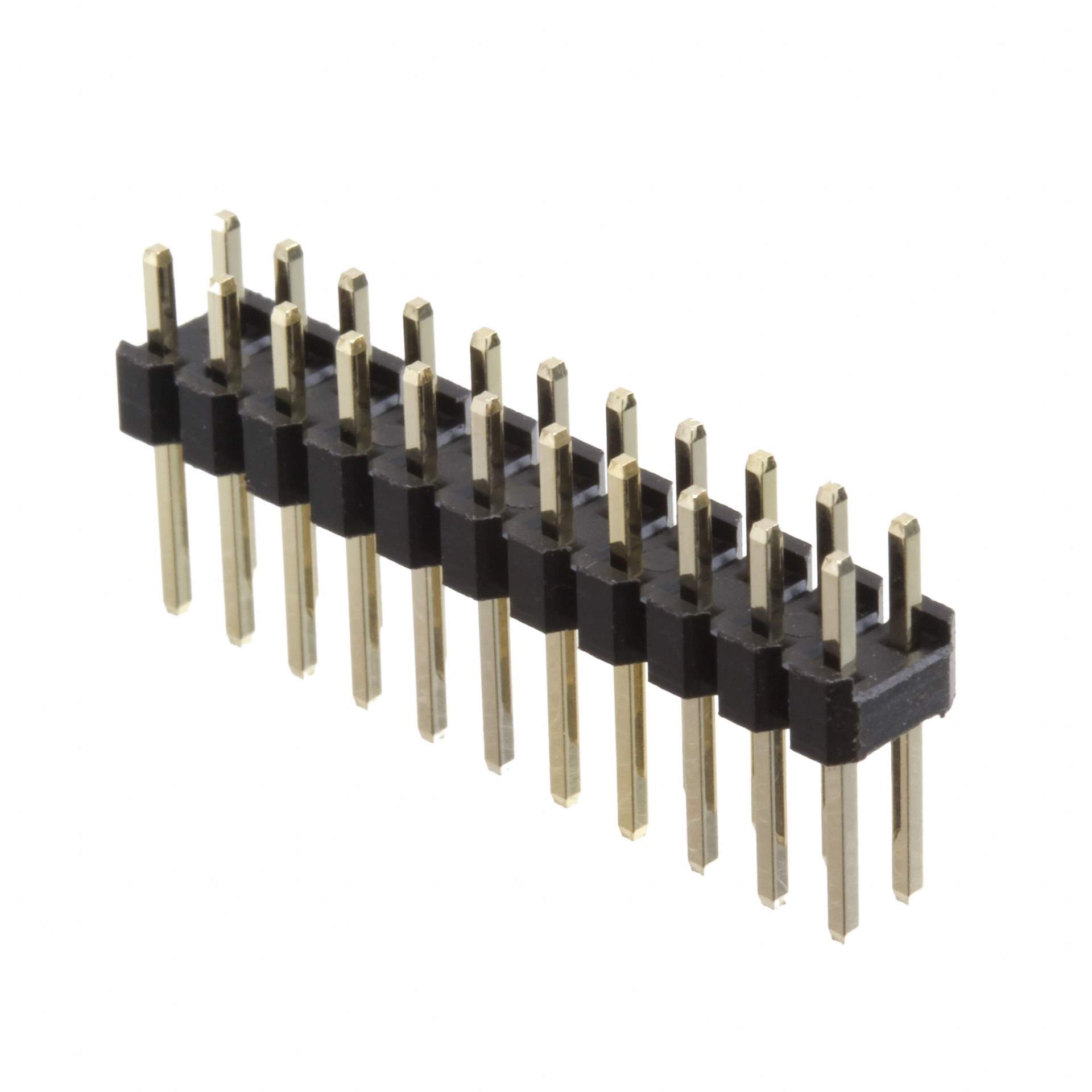

61302221121

Get a Quote

Part No	61302221121
Manufacturer	Wurth Electronics Inc
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 22POS 2.54MM / Connector Header Through Hole 22 position 0.100" (2.54mm)
Datasheet	61302221121 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Wurth Electronics Inc
Series	WR-PHD
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	22
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.236" (6.00mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.454" (11.54mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	-
Contact Finish - Post	-
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA6T), Nylon 6T
Features	-
Temperature Range - Operating	-40°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Voltage Rating	250V
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Moisture Sensitivity Level (MSL)	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	500 pcs
Win Source Part Number	1380987-61302221121
Ultra Librarian 3D Model	Ultra Librarian 61302221121 CAD Model

Description

The WR-PHD Male Pin Header is a high-quality connector designed for various applications in the electronics industry.

Number of Positions: 22
Design: Unshrouded
Connection Type: Board-to-Board or Board-to-Cable
Contact Type: Male Pin
Contact Material: Copper Alloy
Voltage Rating: 250V
Operating Temperature: -40°C to 105°C
