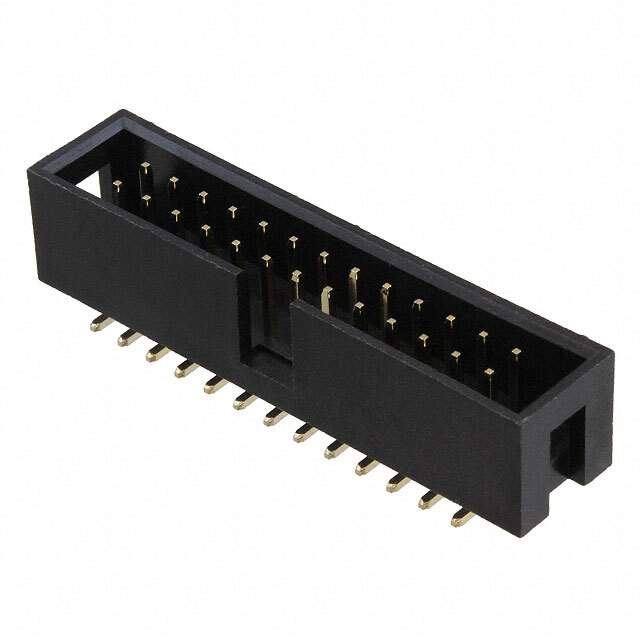

61232620621 Real Image
Same model may have multiple batches, images only for reference.

61232620621

Part No 61232620621
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description CONN HEADER SMD 26POS 2.54MM / Connector Header Surface Mount 26 position 0.100" (2.54mm)
Datasheet
61232620621 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Wurth Electronics Inc
Series WR-BHD
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.197" (5.00mm)
Insulation Height 0.362" (9.20mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Keying Slot, Pick and Place
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 250V
Standard Package 250 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 856845-61232620621
Ultra Librarian 3D Model Ultra Librarian 61232620621 CAD Model

Description

The WR-BHD series header connector is a reliable electronic component used in various applications. Wurth Electronics Inc manufactures this.

  • Number of Positions: 26
  • Contact Gender: Male
  • Keying Slot: Yes
  • Pick and Place: Yes
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Temperature Range: -40°C to 125°C
  • Product Status: Active
