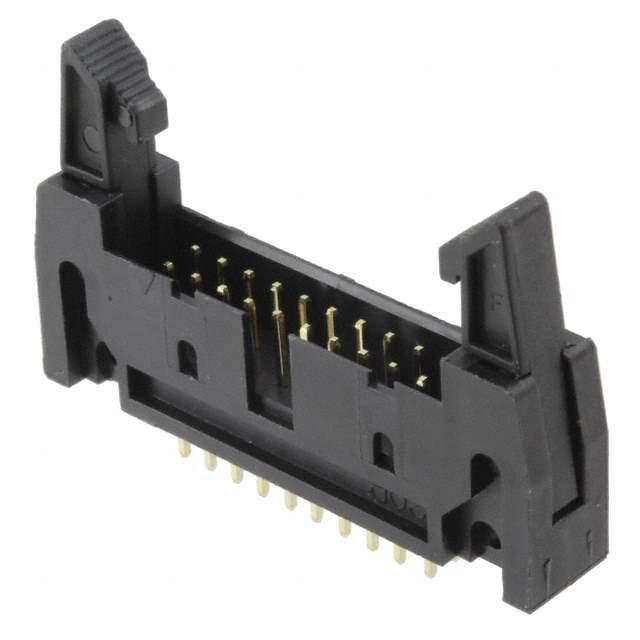

61202022821 Real Image
Same model may have multiple batches, images only for reference.

61202022821

Part No 61202022821
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.54MM / Connector Header Through Hole 20 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Würth Elektronik
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.224" (5.70mm)
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -40°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 250V
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -732-2689,732-2689
Standard Package 108
Win Source Part Number 1332422-61202022821
Ultra Librarian 3D Model Ultra Librarian 61202022821 CAD Model

Description

The 1332422-61202022821 is a header connector that is part of the Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins category.

  • Packaging: Tray
  • Standard Package: 108
  • Positions: 20
  • Keying Slot: Yes
  • Pin Gender: Male
  • Positions Loaded: All
  • Rows: Two
  • Termination: Solder
  • Fastening Type: Latch Lock/Eject Hooks, Long
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Pitch Mating: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Package: DO-214AA, SMB
  • Operating Temperature: -40°C to 125°C
