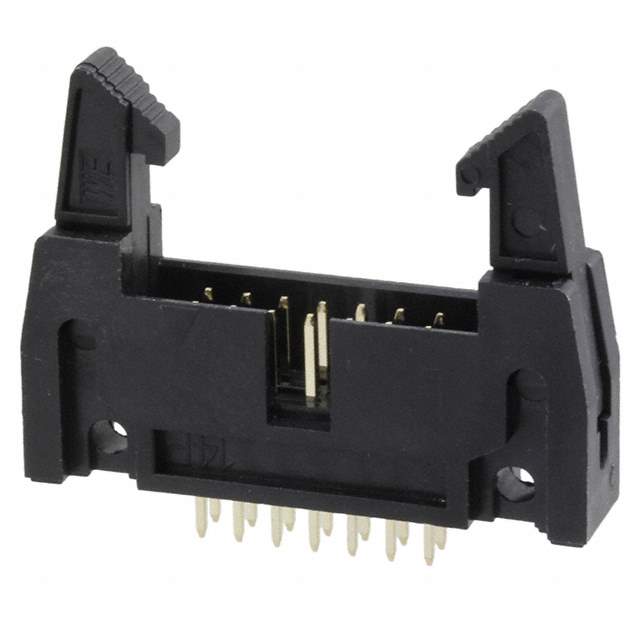

61201422821 Real Image1 61201422821 Real Image2
Same model may have multiple batches, images only for reference.
61201422821 Real Image1 61201422821 Real Image2
61201422821 Real Image1 61201422821 Real Image2
Same model may have multiple batches, images only for reference.

61201422821

Part No 61201422821
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 2.54MM / Connector Header Through Hole 14 position 0.100" (2.54mm)
Datasheet
61201422821 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Wurth Electronics Inc
Series WR-BHD
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Long
Contact Length - Mating 0.224" (5.70mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length -
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating -
Contact Finish - Post -
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -40°C ~ 125°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights -
Contact Finish Thickness - Post -
Applications -
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 132 pcs
Win Source Part Number 1380981-61201422821
Ultra Librarian 3D Model Ultra Librarian 61201422821 CAD Model

Description

The WR-BHD series from Wurth Electronics Inc is a header connector with 14 positions and 2 rows.

  • Feature: Keying slot
  • Contact Type: Male pin
  • Mounting: Through-hole
  • Termination: Solder
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Contact Material: Copper alloy
  • Contact Finish: Gold plated
  • Insulation Material: Polybutylene terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Application: Board to cable/wire
  • Pitch: 0.100" (2.54mm)
  • Operating Temperature: -40°C to 125°C
  • Package: Tray
  • Standard Package Quantity: 132 pcs
