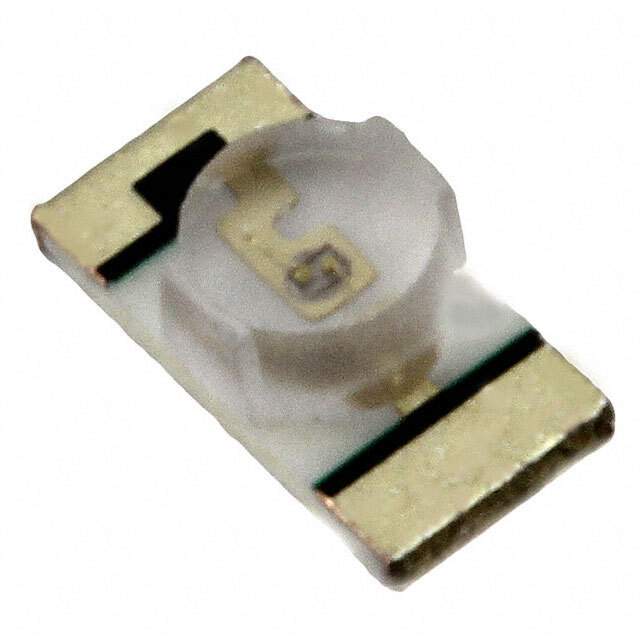

156120VS75000 Real Image
Same model may have multiple batches, images only for reference.

156120VS75000

Part No 156120VS75000
Manufacturer Wurth Electronics Inc
Catalog LED Indication - Discrete
Description WL-SMRW SMD chip LED reverse mount mono-color waterclear | LED GREEN CLEAR 1206 SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Wurth Electronics Inc.
Packaging Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 30mcd
Lens Style Rectangle with Flat Top
Voltage - Forward (Vf) 2V
Current - Test 20mA
Viewing Angle 140°
Mounting Style SMT, Bottom Entry
Wavelength - Dominant 573nm
Wavelength - Peak 575nm
Manufacturer Package 1206
Supplier Device Package 1206
Parts Dimension 3.20mm L x 1.60mm W
Height (Maximum) 1.40mm
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1121318-156120VS75000
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 156120VS75000 CAD Model

Description

The Wurth Electronics Inc. 1206 SMT LED is a standard configuration green LED with a clear colorless lens.

  • Viewing Angle: 140 degrees
  • Millicandela Rating: 30mcd
  • Wavelength-Dominant: 573nm
  • Wavelength-Peak: 575nm
  • Package: 1206
  • Lens Style: rectangle with a flat top
  • Height: 1.40mm
  • Packaging: reel
  • Application: widely used in optoelectronics
  • Popularity: medium in the market
  • MSL Level: 3
  • Parts Dimension: 3.20mm L x 1.60mm W
  • Voltage-Forward (Vf): 2V
