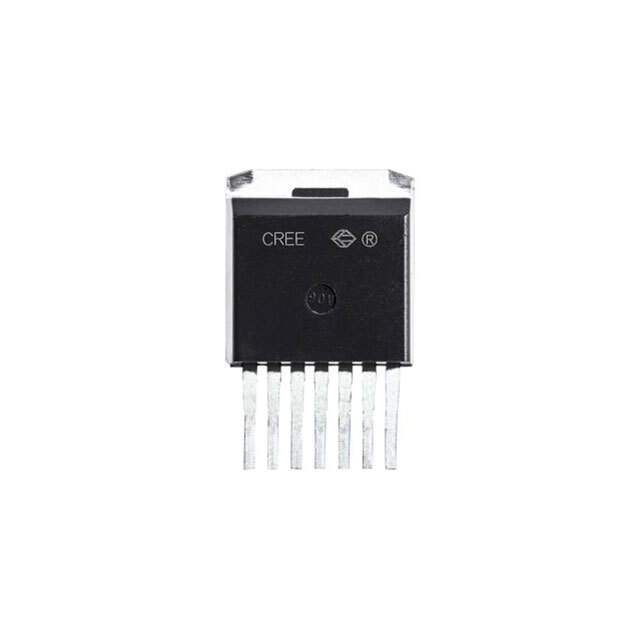

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1202951-C3M0120065J
Manufacturer Wolfspeed, Inc.
Category Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs
Series C3M™
Package Tube
Product Status Active
FET Type N-Channel
Rds On (Max) @ Id, Vgs 157mOhm @ 6.76A, 15V
Vgs(th) (Max) @ Id 3.6V @ 1.86mA
Operating Temperature -40°C ~ 175°C (TJ)
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian C3M0120065J CAD Model

Description

The C3M™ series MOSFET transistor from Wolfspeed, Inc. is an N-channel FET with a maximum on-resistance (Rds On) of 157mOhm at a drain current (Id) of 6.76A and a gate-source voltage (Vgs) of 15V.

  • Gate-Source Threshold Voltage (Vgs(th)): 3.6V @ 1.86mA
  • Operating Temperature Range: -40°C to 175°C
  • Mounting Type: Surface Mountable
  • Manufacturer: Wolfspeed, Inc.
  • Series: C3M™
  • Designed for: High-power applications, offering low on-resistance and high efficiency.
