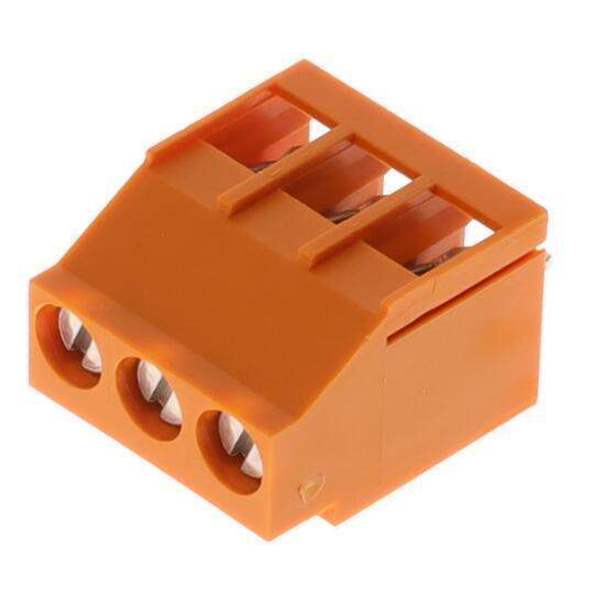

1934260000Weidmüller
Same model may have multiple batches, images only for reference.

1934260000

Part No 1934260000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description TERM BLK 3P SIDE ENT 5.08MM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Wire to Board
Package Bulk
Series Omnimate LL
Product Status Active
Pitch 0.200" (5.08mm)
Mating Orientation Horizontal with Board
Mounting Type Through Hole
Operating Temperature Through Hole-50°C ~ 120°C
Housing Material Thermoplastic, Wemid
Contact Material - Plating Copper Alloy - Tin Plated
Win Source Part Number WS1206694-1934260000
Ultra Librarian 3D Model Ultra Librarian 1934260000 CAD Model

Description

This PCB terminal provides connections for 32 A and 6 mm² conductor cross-section with the proven clampingyoke connection, in 5.00 and 5.08 mm pitch. 90° conductor outlet direction.
