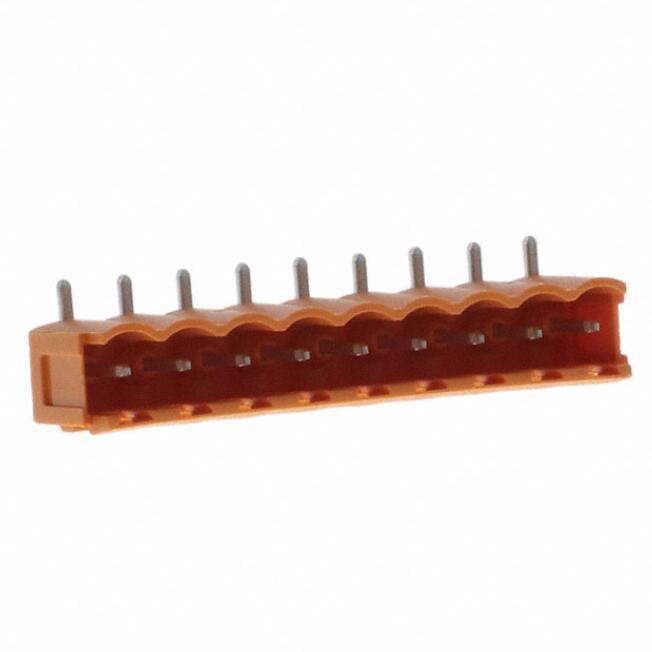

Same model may have multiple batches, images only for reference.
1511060000 Weidmüller
Same model may have multiple batches, images only for reference.

1511060000

Part No 1511060000
Manufacturer Weidmuller
Catalog Rectangular Connectors
Description TERM BLOCK HDR 9POS 90DEG 5.08MM
Datasheet
1511060000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Series Omnimate SL
Package Bulk
Product Status Obsolete
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 9
Positions Per Level 9
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Win Source Part Number WS1205989-1511060000
Ultra Librarian 3D Model Ultra Librarian 1511060000 CAD Model

Description

Male connectors with 90° outlet direction. The solder pin length is optimised for wave flow soldering. The pin headers provide space for labelling and can be coded.
