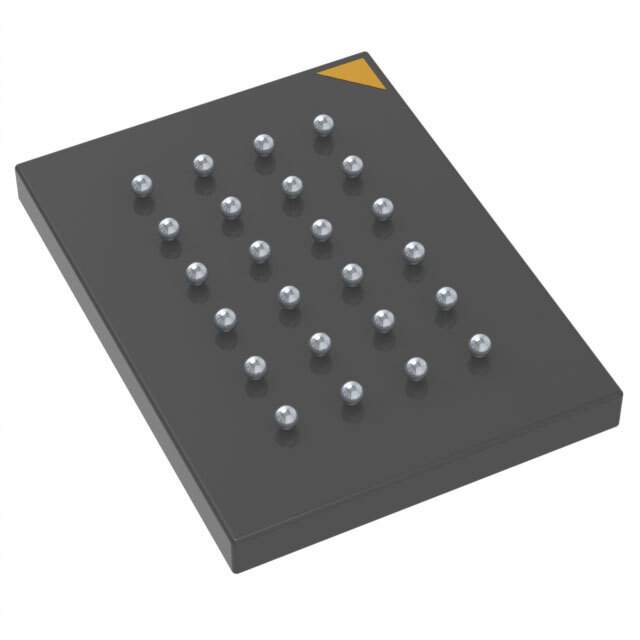

W25Q16DVTCIG Real Image
Same model may have multiple batches, images only for reference.

W25Q16DVTCIG

Part No W25Q16DVTCIG
Manufacturer Winbond Electronics
Catalog Flash
Description IC FLASH 16MBIT SPI/QUAD 24TFBGA  /  FLASH - NOR Memory IC 16Mb (2M x 8) SPI - Quad I/O 104 MHz 24-TFBGA (8x6)
Datasheet
W25Q16DVTCIG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tape & Reel (TR)
Product Status Obsolete
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 16Mb (2M x 8)
Memory Interface SPI - Quad I/O
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 50µs, 3ms
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 24-TBGA
Supplier Device Package 24-TFBGA (8x6)
Base Product Number W25Q16
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Standard Package 5,000
Win Source Part Number 994722-W25Q16DVTCIG
Ultra Librarian 3D Model Ultra Librarian W25Q16DVTCIG CAD Model

Description

The Winbond Electronics W25Q16DVTCIG is a 16Mb (2M x 8) non-volatile memory integrated circuit with a voltage supply range of 2.7V to 3.6V.

  • Series: SpiFlash®
  • Packaging: tape and reel (TR)
  • Standard Package: 5,000
  • Mounting: SMD (SMT)
  • Memory Format: FLASH
  • Clock Frequency: 104 MHz
  • Memory Interface: SPI - Quad I/O
  • Write Cycle Time: 50µs per word and 3ms per page
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
  • Temperature Range: -40°C to 85°C (TA)
  • Package: 24-TBGA
  • Supplier Device Package: 24-TFBGA (8x6)
  • Status: obsolete
