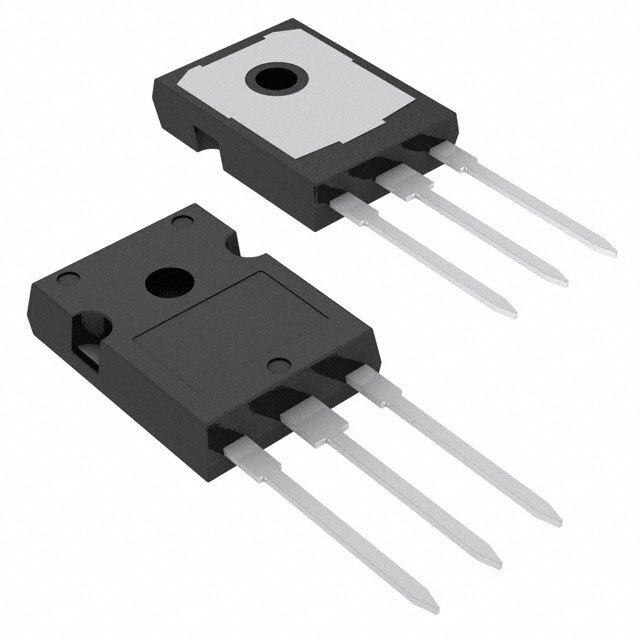

Same model may have multiple batches, images only for reference.
NXPSC20650W6Q WeEn Semiconductors – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

NXPSC20650W6Q

Part No NXPSC20650W6Q
Manufacturer WeEn Semiconductors
Catalog Diodes, Rectifiers - Arrays
Description Diode Array 1 Pair Common Cathode 650 V 20A Through Hole TO-247-3
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer WeEn Semiconductors
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 10 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 250 µA @ 650 V
Operating Temperature - Junction 175°C (Max)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247-3
Base Product Number NXPSC
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1481219-NXPSC20650W6Q
Ultra Librarian 3D Model Ultra Librarian NXPSC20650W6Q CAD Model
