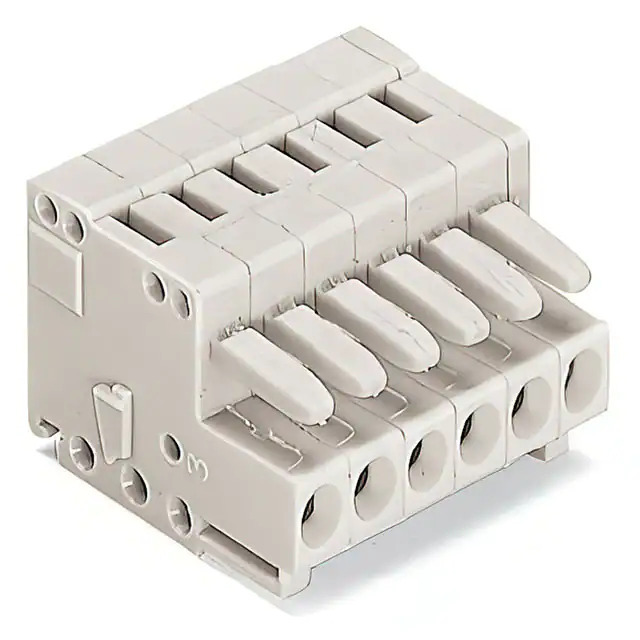

Same model may have multiple batches, images only for reference.

734-108

Name: 734-108
Brand: WAGO Corporation
SKU: 1364680
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	734-108
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	1-CONDUCTOR FEMALE PLUG; 100% PR / 8 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMINI
Package	Box
Product Status	Active
Type	Plug, Female Sockets
Number of Positions	8
Positions Per Level	8
Number of Levels	1
Pitch	0.138" (3.50mm)
Header Orientation	-
Plug Wire Entry	180°
Termination Style	Screwless - Leg Spring, Push-In Spring
Mounting Type	Free Hanging (In-Line)
Current - IEC	10A
Voltage - IEC	320 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	14-28 AWG
Wire Gauge or Range - mm²	0.08-1.5mm²
Color	Gray
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	Retention Latches (Non-Wire Side)
Material Flammability Rating	UL94 V-0
Ingress Protection	-
Screw Size	-
Torque - Screw	-
Wire Strip Length	6-7mm
Contact Material	Copper Alloy
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Tail Length	-
Insulation Height	0.528" (13.40mm)
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1364680-734-108
Ultra Librarian 3D Model	Ultra Librarian 734-108 CAD Model

Alternative Products

Description

The 1364680-734-108 is a terminal block header, plug, and socket connector from WAGO Corporation. WAGO Corporation's 1364680-734-108...

Series: MCSMINI
Temperature Range: -60°C to 100°C
Connector Type: Plug and Female Socket
Positions: 8
Features: Retention Latches (Non-Wire Side)
Termination Style: Screwless Leg Spring and Push-In Spring
Contact Material: Copper Alloy
Housing Material: Polyamide (PA66), Nylon 6/6
