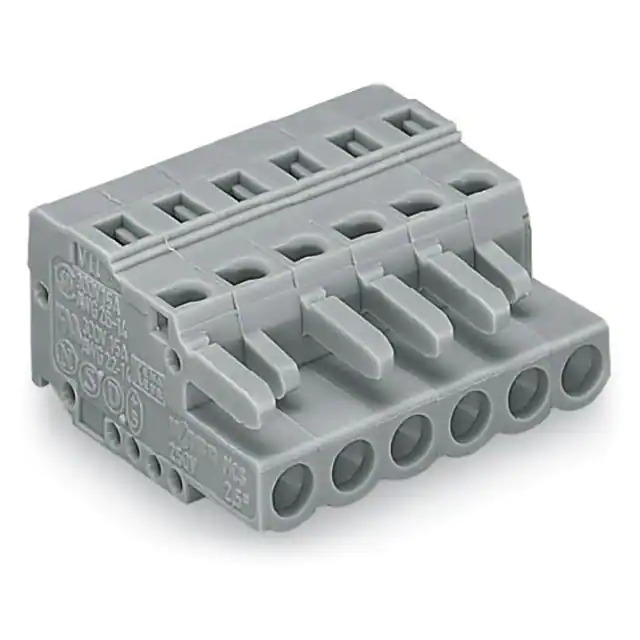

231-107/026-000 WAGO Corporation
Same model may have multiple batches, images only for reference.

231-107/026-000

Part No 231-107/026-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description 1-CONDUCTOR FEMALE PLUG; 2.5 MM; / 7 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI Classic
Package Box
Product Status Active
Type Plug, Female Sockets
Number of Positions 7
Positions Per Level 7
Number of Levels 1
Pitch 0.197" (5.00mm)
Header Orientation -
Plug Wire Entry 180°
Termination Style Screwless - Push-In Spring
Mounting Type Free Hanging (In-Line)
Current - IEC 16A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 600 V
Wire Gauge or Range - AWG 12-28 AWG
Wire Gauge or Range - mm² 0.08-2.5mm²
Color Gray
Temperature Range - Operating -60°C ~ 85°C
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length 8-9mm
Contact Material Copper Alloy
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length -
Insulation Height 0.563" (14.30mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364679-231-107/026-000
Ultra Librarian 3D Model Ultra Librarian 231-107/026-000 CAD Model

Description

The WAGO Corporation MCSMIDI Classic series is a plug with female sockets terminal block. WAGO Corporation's MCSMIDI Classic series...

  • Operating Temperature: -60°C to 85°C
  • Features: Retention Latches (Non-Wire Side)
  • Mounting Type: Free Hanging (In-Line)
  • Color: Gray
  • Positions: 7
  • Insulation Height: 0.563" (14.30mm)
  • Contact Material: Copper Alloy
  • Flammability Rating: UL94 V-0
  • Pitch: 0.197" (5.00mm)
  • Termination Style: Screwless Push-In Spring
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Current Rating (IEC): 16A
  • Current Rating (UL): 15A
  • Voltage Rating (UL): 600V
  • Wire Gauge: 12-28 AWG
  • Contact Mating Finish: Tin
