Same model may have multiple batches, images only for reference.

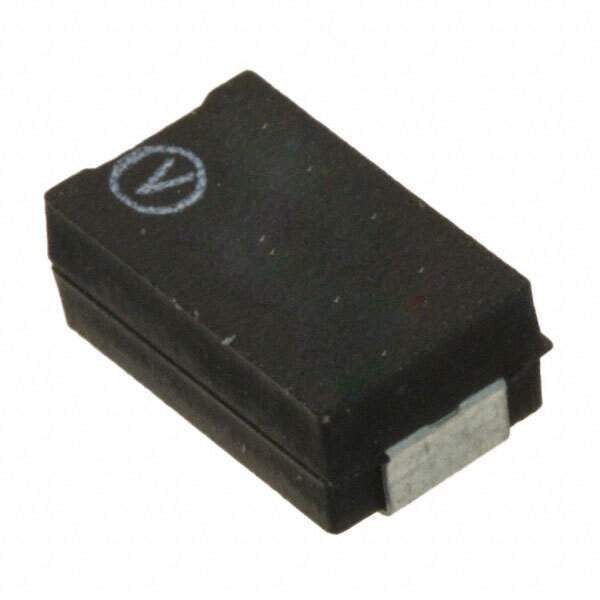

Y1746100R000T9R Real Image
Same model may have multiple batches, images only for reference.

Y1746100R000T9R

Part No Y1746100R000T9R
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 100OHM 0.01% 0.6W J LEAD / 100 Ohms ±0.01% 0.6W Chip Resistor 3017 J-Lead Moisture Resistant, Non-Inductive, Pulse Withstanding Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series SMR3DZ
Package Tape & Reel
Resistance 100 Ohms
Tolerance ±0.01%
Power (Watts) 0.6W
Composition Metal Foil
Features Moisture Resistant, Non-Inductive, Pulse Withstanding
Temperature Coefficient ±0.2ppm/°C
Temperature Range - Operating -55°C ~ 175°C
Package / Case 3017 J-Lead
Supplier Device Package SMD
Size / Dimension 0.287" L x 0.170" W (7.29mm x 4.32mm)
Height - Seated (Max) 0.122" (3.10mm)
Number of Terminations 2
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351416-Y1746100R000T9R
Ultra Librarian 3D Model Ultra Librarian Y1746100R000T9R CAD Model

Description

The SMR3DZ is a chip resistor from Vishay Foil Resistors (Division of Vishay Precision Group).

  • Series: SMR3DZ
  • Resistance: 100 Ohms
  • Power Rating: 0.6W
  • Tolerance: ±0.01%
  • Temperature Coefficient: ±0.2ppm/°C
  • Operating Temperature: -55°C to 175°C
  • Package Type: Tape & Reel
  • Size: 0.287" L x 0.170" W (7.29mm x 4.32mm)
  • Features: Moisture-Resistant, Non-Inductive, Pulse-Withstanding
  • Standard Package: 50
