Same model may have multiple batches, images only for reference.

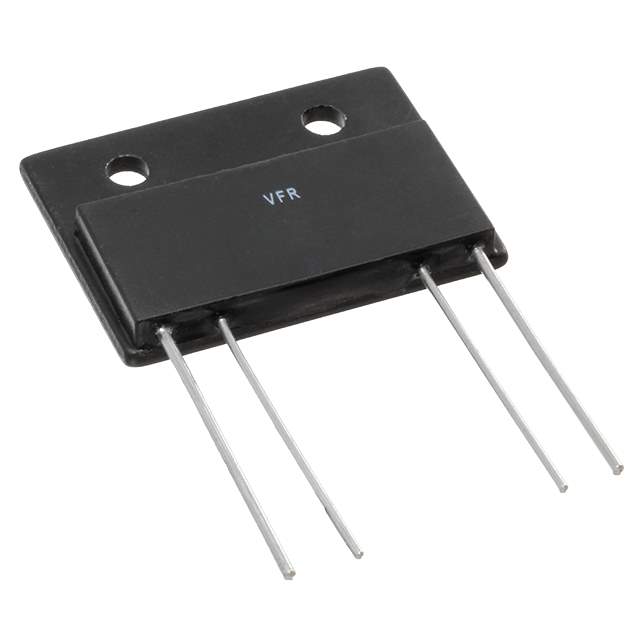

Y09430R05000F0L Real Image
Same model may have multiple batches, images only for reference.

Y09430R05000F0L

Part No Y09430R05000F0L
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 0.05 OHM 10W 1% RADIAL / 50 mOhms ±1% 10W Through Hole Resistor Radial - 4 Leads Current Sense, Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VCS302
Package Bulk
Resistance 50 mOhms
Tolerance ±1%
Power (Watts) 10W
Composition Metal Foil
Features Current Sense, Moisture Resistant, Non-Inductive
Temperature Coefficient ±5ppm/°C
Package / Case Radial - 4 Leads
Size / Dimension 1.340" L x 0.210" W (34.04mm x 5.33mm)
Height - Seated (Max) 1.024" (26.01mm)
Number of Terminations 4
Standard Package 25
RoHS Status RoHS non-compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1338985-Y09430R05000F0L
Ultra Librarian 3D Model Ultra Librarian Y09430R05000F0L CAD Model

Description

The VCS302 is a metal foil resistor that has a resistance of 50 mOhms and a tolerance of ±1%.

  • Resistance: 50 mOhms
  • Tolerance: ±1%
  • Power: 10W
  • Package: Bulk
  • Size: 1.340" L x 0.210" W (34.04mm x 5.33mm)
  • Height: 1.024" (26.01mm)
  • Leads: Four
  • Features: Non-Inductive, Moisture Resistant
  • Temperature Coefficient: ±5ppm/°C
  • Operating Temperature: Not Specified
  • Manufacturer: Vishay Foil Resistors (Division of Vishay Precision Group)
  • RoHS: Non-Compliant
