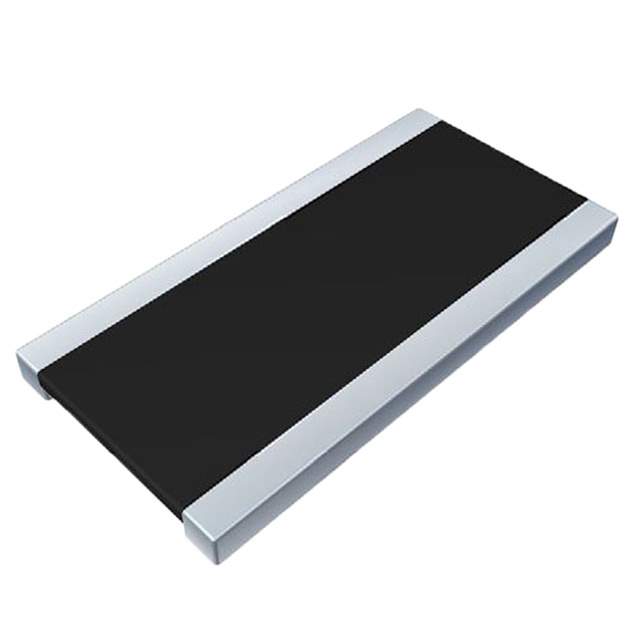

Same model may have multiple batches, images only for reference.

WSL10205L000FEA

Name: WSL10205L000FEA
Brand: Vishay
SKU: 1330635
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	WSL10205L000FEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	RES 0.005 OHM 1% 2W 2010 / 5 mOhms ±1% 2W Chip Resistor Wide 2010 (5025 Metric), 1020 Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet	WSL10205L000FEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	Vishay Dale
Packaging	Reel - TR
Resistance	5 mOhms
Tolerance	±1%
Power (Watts)	2W
Composition	Metal Element
Features	Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±50ppm/°C
Temperature Range - Operating	-65°C ~ 170°C
Case / Package	Wide 2010 (5025 Metric), 1020
Supplier Device Package	1020
Ratings	AEC-Q200
Size / Dimension	0.200" L x 0.100" W (5.08mm x 2.54mm)
Height - Seated (Max)	0.030" (0.76mm)
Number of Terminations	2
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	541-10046-1,541-10046-2,541-10046-6
Standard Package	4,000
Win Source Part Number	1330635-WSL10205L000FEA
Ultra Librarian 3D Model	Ultra Librarian WSL10205L000FEA CAD Model

Description

The Vishay Dale WSL10205L000FEA is a chip resistor that is surface-mounted and is ideal for use in various electronic applications.

Features: Anti-Sulfur, Automotive AEC-Q200, Moisture-Resistant, Pulse-Withstanding
Tolerance: ±1%
Temperature Coefficient: ±50ppm/°C
Rating: AEC-Q200
Power Rating: 2W
Resistance: 5 mOhms
Composition: Metal Element
Terminations: 2
Package: 4,000 Resistors
Size: 0.200" L x 0.100" W (5.08mm x 2.54mm)
Height (Seated): 0.030" (0.76mm)
Temperature Range: -65°C to 170°C
Case/Package: 2010 (5025 Metric), 1020
