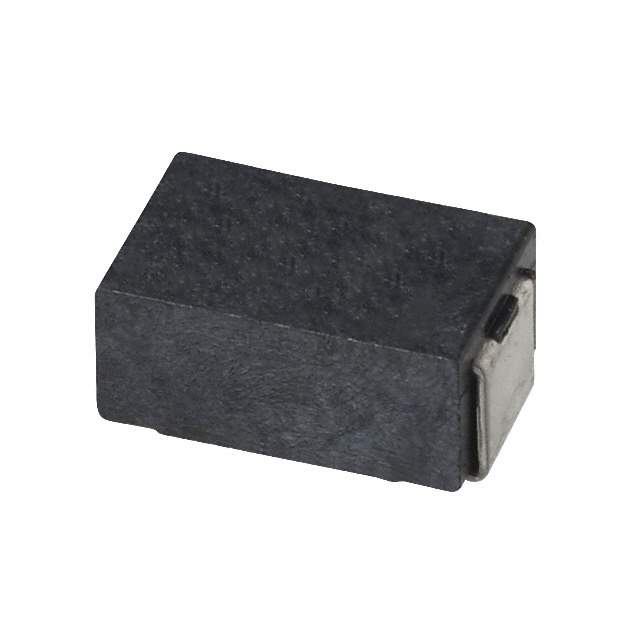

WSC25155R000FEA Real Image
Same model may have multiple batches, images only for reference.

WSC25155R000FEA

Part No WSC25155R000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 5 OHM 1% 1W 2515 / 5 Ohms ±1% 1W Chip Resistor 2515 J-Lead Pulse Withstanding Wirewound
Datasheet
WSC25155R000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSC
Package Tape & Reel
Resistance 5 Ohms
Tolerance ±1%
Power (Watts) 1W
Composition Wirewound
Features Pulse Withstanding
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -65°C ~ 275°C
Package / Case 2515 J-Lead
Supplier Device Package 2515
Dimension 0.250" L x 0.150" W (6.35mm x 3.81mm)
Height - Seated (Max) 0.125" (3.17mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names WSCB-5.0DKR,WSCB-5.0TR,WSCB-5.0CT
Standard Package 2,000
Win Source Part Number 966949-WSC25155R000FEA
Ultra Librarian 3D Model Ultra Librarian WSC25155R000FEA CAD Model

Description

This wirewound chip resistor from Vishay Dale is part of the WSC series and is ideal for pulse withstanding applications.

  • Resistance: 5 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Series: WSC
  • Packaging: Tape and Reel
  • Package / Case: 2515 J-Lead
  • Power Rating: 1W
  • Height: 0.125" (3.17mm)
  • Dimensions: 0.250" L x 0.150" W (6.35mm x 3.81mm)
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
