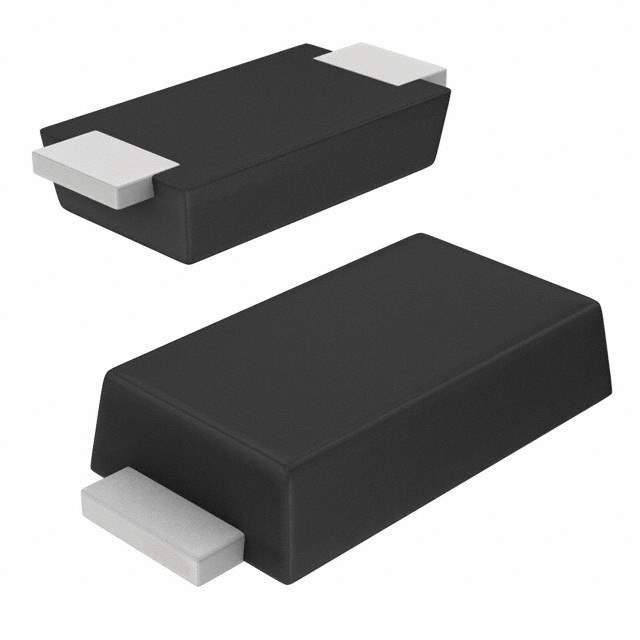

VSSAF5L45-M3/6A

Name: VSSAF5L45-M3/6A
Brand: Vishay
SKU: 534987
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VSSAF5L45-M3/6A
Manufacturer	Vishay
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 45V 3A DO221AC
Datasheet	VSSAF5L45-M3/6A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	3A (DC)
Voltage - Forward (Vf) (Max) @ If	560mV @ 5A
Speed(Frequency)	Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr	650μA @ 45V
Capacitance @ Vr, F	740pF @ 4V, 1MHz
Mounting	SMD (SMT)
Case / Package	DO-221AC (SlimSMA)
Operating Temperature - Junction	-40°C to 150°C
Win Source Part Number	1117739-VSSAF5L45-M3/6A
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian VSSAF5L45-M3/6A CAD Model

Description

The VSSAF5L45-M3/6A is a Schottky diode from Vishay.

Mounting Type: Surface-Mount
Package: DO-221AC (SlimSMA)
Reverse Voltage (Vr) (max): 45V
Average Rectified Current (Io): 3A (DC)
Forward Voltage (Vf) (max) @ If: 560mV @ 5A
Use: Discrete Semiconductor Products
Popularity: Medium
Supply and Demand Status: Balanced
Capacitance @ Vr, F: 740pF @ 4V, 1MHz
Recovery Speed (Frequency): 200mA (Io)
Status: Active
Operating Temperature: -40°C to 150°C
