AC0402FR-07560RL Yageo
Same model may have multiple batches, images only for reference.

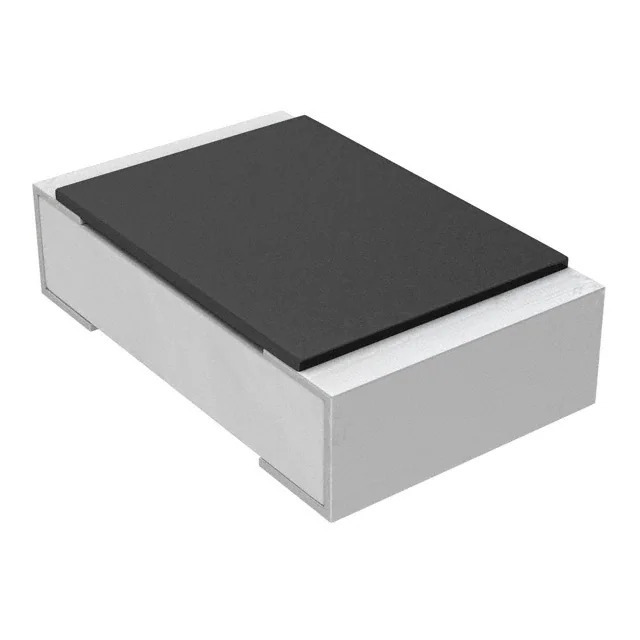

AC0402FR-07560RL

Part No AC0402FR-07560RL
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES SMD 560 OHM 1% 1/16W 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series AC
Package Tape & Reel
Product Status Active
Resistance 560 Ohms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.015" (0.37mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1373727-AC0402FR-07560RL
Ultra Librarian 3D Model Ultra Librarian AC0402FR-07560RL CAD Model

Description

The YAGEO AC0402FR-07560RL is a chip resistor designed for surface mount applications.

  • Resistance: 560 Ohms
  • Tolerance: ±1%
  • Resistor Type: Thick Film
  • Compliance: Automotive AEC-Q200
  • Moisture Resistant: Yes
  • Power Rating: 0.063W (1/16W)
  • Temperature Coefficient: ±100ppm/°C
  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Seated Height (Max): 0.015" (0.37mm)
  • Series: AC
  • Packaging: Tape & Reel
  • Operating Temperature: -55°C to 155°C
  • REACH Status: Unaffected
