Same model may have multiple batches, images only for reference.

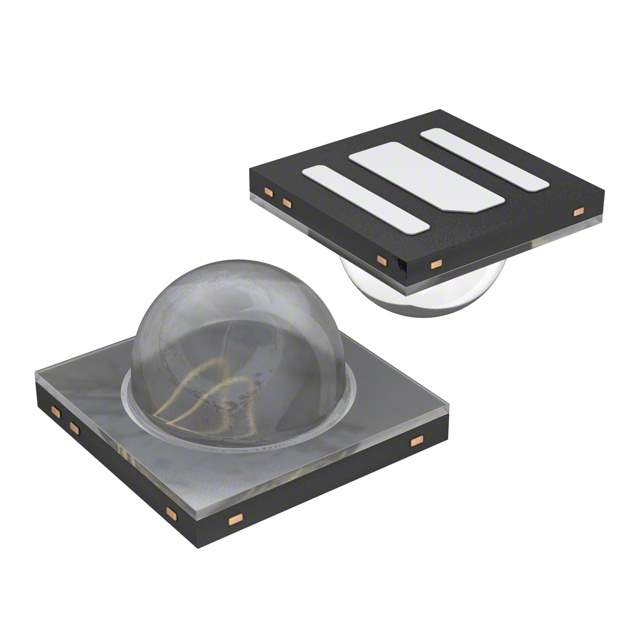

VSMY98545 Real Image
Same model may have multiple batches, images only for reference.

VSMY98545

Part No VSMY98545
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description High Power Infrared Emitting Diode, 850 nm,Surface Emitter Technology
Datasheet
VSMY98545 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay Semiconductor Opto Division
Series SurfLight
Packaging Reel - TR
Type Infrared (IR)
Current - DC Forward (If) (Maximum) 1A
Radiant Intensity (Ie) Min @ If 230mW/sr @ 1A
Wavelength 850nm
Voltage - Forward (Vf) (Typ) 1.8V
Viewing Angle 90°
Orientation Top View
Operating Temperature Range -40°C ~ 95°C (TA)
Mounting SMD
Package 3-SMD, No Lead
Win Source Part Number 1279890-VSMY98545
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name VSMY98545
Introduction Date December 09, 2013
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian VSMY98545 CAD Model

Description

The Vishay Semiconductor Opto Division electronic component with Win Source Part Number 1279890-VSMY98545 is a medium popularity Infrared (IR) LED.

  • Manufacturer Homepage: www.vishay.com
  • Supply and Demand Status: Limited
  • Radiant Intensity: 230mW/sr @ 1A
  • Wavelength: 850nm
  • Forward Voltage: 1.8V (typical)
  • Package: 3-SMD, no lead
  • Orientation: Top view
  • Viewing Angle: 90°
  • Maximum Operating Temperature: -40°C to 95°C (TA)
  • Compliant with: Halogen-free standards
