Products specifications

Categories Optoelectronics
Manufacturer Vishay
Packaging Bulk
Status Active
Type Infrared (IR)
Continuous forward current- Max 100mA
Radiant Intensity (Ie) Min @ If 10mW/sr @ 100mA
Wavelength 890nm
Forward Voltage 1.35V
Viewing Angle 44°
Orientation Side View
Temperature Range - Operating -40°C to 100°C (TA)
Mounting Through Hole
Dimension Radial
Win Source Part Number 1114789-TSSF4500
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSSF4500 CAD Model

Description

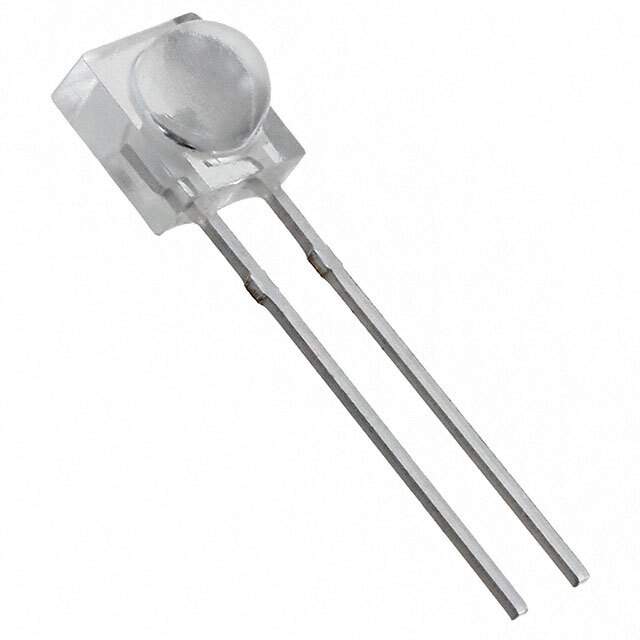

The Vishay TSSF4500 is an infrared (IR) component that is side-view oriented and has a through-hole mounting.

  • Manufacturer: Vishay
  • Orientation: Side-view
  • Mounting: Through-hole
  • Forward Voltage: 1.35V
  • Viewing Angle: 44 degrees
  • Wavelength: 890nm
  • Radiant Intensity (Ie) min @ If: 10mW/sr @ 100mA
  • Category: Optoelectronics
  • Temperature Range: -40°C to 100°C (TA)
  • Continuous Forward Current-Max: 100mA
  • Supply and Demand Status: Balanced
