Same model may have multiple batches, images only for reference.

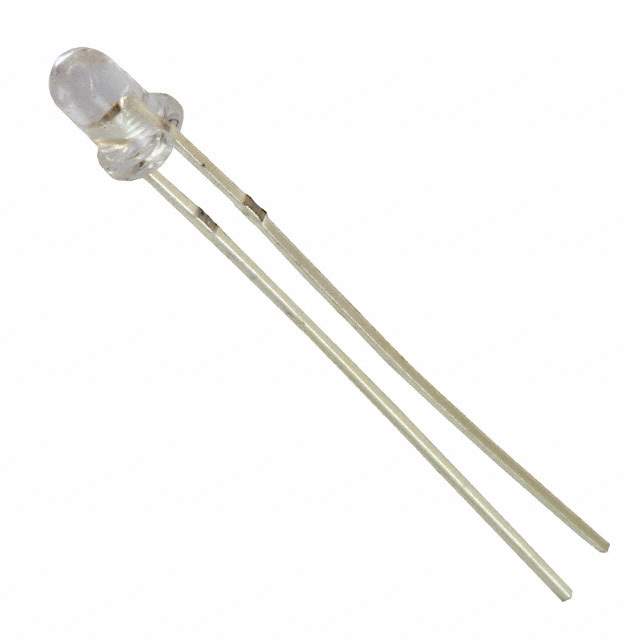

UV3TZ-390-15 Real Image
Same model may have multiple batches, images only for reference.

UV3TZ-390-15

Part No UV3TZ-390-15
Manufacturer Bivar Inc.
Catalog Infrared, UV, Visible Emitters
Description EMITTER UV 390NM 20MA RADIAL / Ultraviolet (UV) Emitter 390nm 3.4V 20mA 15° Radial
Datasheet
UV3TZ-390-15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Bivar Inc.
Series TZ
Package Bulk
Type Ultraviolet (UV)
Current - DC Forward (If) (Max) 20mA
Wavelength 390nm
Voltage - Forward (Vf) (Typ) 3.4V
Viewing Angle 15°
Orientation Top View
Temperature Range - Operating -25°C ~ 80°C (TA)
Mounting Type Through Hole
Package / Case Radial
Base Product Number UV3TZ-390
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1340116-UV3TZ-390-15
Ultra Librarian 3D Model Ultra Librarian UV3TZ-390-15 CAD Model

Description

The UV3TZ-390-15 is an ultraviolet (UV) LED emitter that comes in a radial package with a standard package of 100.

  • Wavelength: 390nm
  • Viewing Angle: 15°
  • Mounting Type: Through Hole
  • Operating Temperature: -25°C ~ 80°C
  • MSL: 1 (Unlimited)
  • Category: Optoelectronics-LED Emitters-Infrared, UV, Visible
  • Packaging: Radial, 100 per Package
  • Manufacturer: Bivar Inc.
  • Base Product Number: UV3TZ-390
