Products specifications

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Vishay Semiconductor Opto Division
Series -
Package Tape & Reel
Product Status Active
Type Infrared (IR)
Current - DC Forward (If) (Max) 70mA
Radiant Intensity (Ie) Min @ If 16mW/sr @ 70mA
Wavelength 940nm
Voltage - Forward (Vf) (Typ) 1.6V
Viewing Angle 80°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Base Product Number MY12940
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371979-VSMY12940
Ultra Librarian 3D Model Ultra Librarian VSMY12940 CAD Model

Description

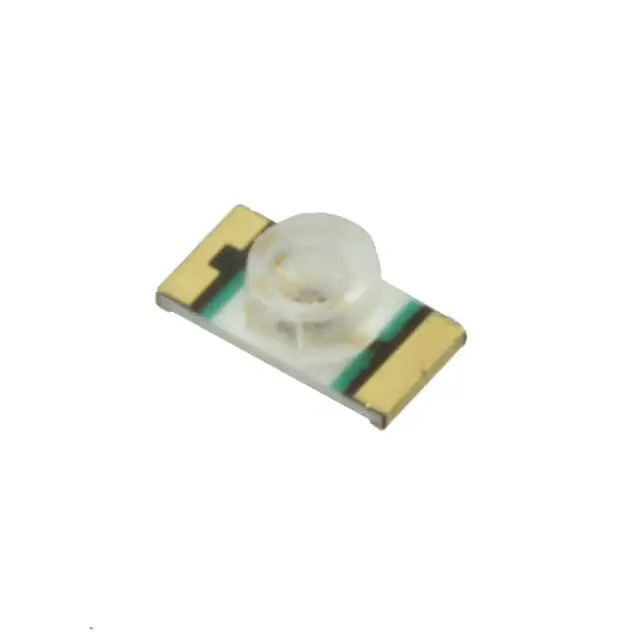

The 1371979-VSMY12940 is an infrared (IR) LED emitter from Vishay Semiconductor Opto Division.

  • Category: Optoelectronics
  • Wavelength: 940nm
  • Package / Case: 1206 (3216 Metric)
  • Voltage - Forward (Vf) (Typ): 1.6V
  • Viewing Angle: 80°
  • DC Forward Current (If): 70mA
  • Radiant Intensity (Ie) @ If: 16mW/sr @ 70mA
  • Operating Temperature: -40°C ~ 85°C
