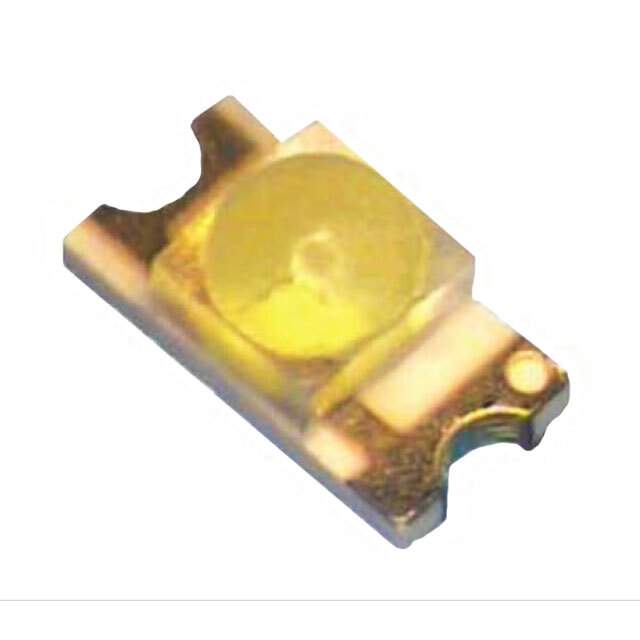

MTSM0074-843-IR Real Image
Same model may have multiple batches, images only for reference.

MTSM0074-843-IR

Part No MTSM0074-843-IR
Manufacturer Marktech Corporate
Catalog Infrared, UV, Visible Emitters
Description SWIR EMITTER 740NM 1206 SMD DOME / Infrared (IR) Emitter 740nm 1.7V 30mA 3.2mW/sr @ 30mA 1206 (3216 Metric)
Datasheet
MTSM0074-843-IR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Marktech Optoelectronics
Package Tape & Reel
Type Infrared (IR)
Current - DC Forward (If) (Max) 30mA
Radiant Intensity (Ie) Min @ If 3.2mW/sr @ 30mA
Wavelength 740nm
Voltage - Forward (Vf) (Typ) 1.7V
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Base Product Number MTSM0074
Standard Package 2,000
MSL Level 5A (24 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1339856-MTSM0074-843-IR
Ultra Librarian 3D Model Ultra Librarian MTSM0074-843-IR CAD Model

Description

The MTSM0074-843-IR is an infrared (IR) LED emitter from the MTSM0074 series of optoelectronics.

  • Packaging: Tape and Reel
  • Orientation: Top View
  • Standard Package: 2,000
  • Viewing Angle: Not Specified
  • Wavelength: 740nm
  • Mounting Type: Surface Mount
  • Package/Case: 1206 (3216 Metric)
  • Operating Temperature: -40°C to 85°C (TA)
  • MSL Level: 5A (24 Hours)
  • HTSUS: 8541.41.0000
  • Manufacturer: Marktech Optoelectronics
  • Base Product Number: MTSM0074
  • Forward Voltage: 1.7V (typ)
  • DC Forward Current: 30mA
  • Radiant Intensity (Min): 3.2mW/sr @ 30mA
