Products specifications

Category Optoelectronics - LED Emitters - Infrared, UV, Visible
Mfr Vishay Semiconductor Opto Division
Series SurfLight™
Package Bulk
Type Infrared (IR)
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 300mW/sr @ 100mA
Wavelength 850nm
Voltage - Forward (Vf) (Typ) 1.65V
Viewing Angle 6°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case T 1 3/4
Base Product Number VSLY5850
Standard Package 4,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1336907-VSLY5850
Ultra Librarian 3D Model Ultra Librarian VSLY5850 CAD Model

Description

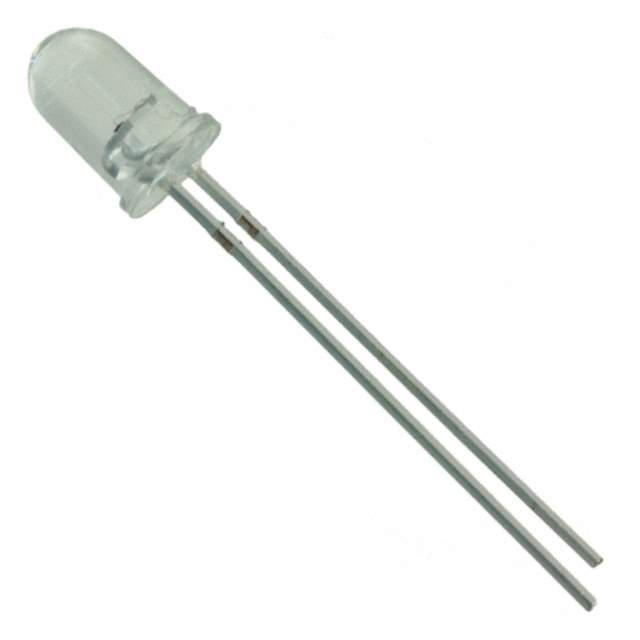

The Vishay Semiconductor Opto Division VSLY5850 is an Infrared (IR) LED emitter that belongs to the SurfLight™ series manufactured by Vishay Semiconductor Opto Division.

  • Series: SurfLight™
  • Viewing Angle: 6 degrees
  • Wavelength: 850nm
  • Package: T 1 3/4
  • Mounting Type: Through Hole
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Forward Voltage (Vf): 1.65V
  • Maximum DC Forward Current (If): 100mA
  • Radiant Intensity (Ie): 300mW/sr @ 100mA
  • Package: Bulk
  • Standard Package: 4,000
  • MSL: 1 (Unlimited)
  • HTSUS: 8541.41.0000
