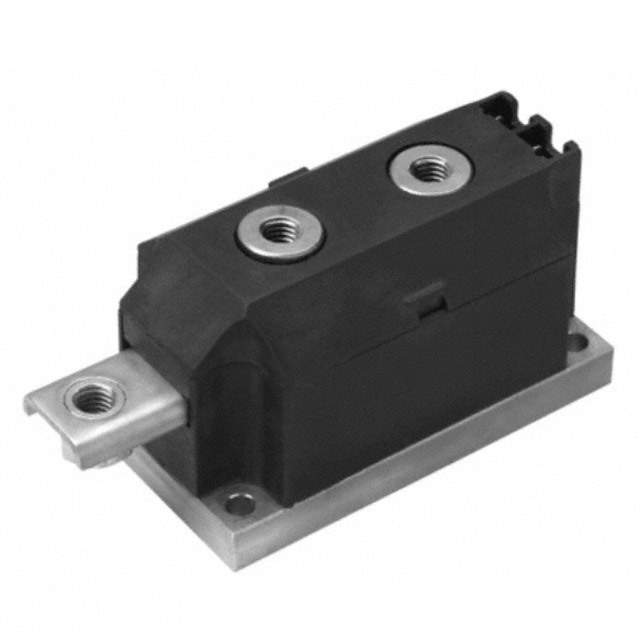

VSKLF200-04HK

Part No VSKLF200-04HK
Manufacturer Vishay
Catalog SCRs - Single - Modules
Description SCR DBL HISCR 400V 200A MAGNAPAK
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Part Status Obsolete(EOL)
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 400V
Current - On State (It (AV)) (Maximum) 200A
Current - On State (It (RMS)) (Maximum) 444A
Voltage - Gate Trigger (Vgt) (Maximum) 3V
Current - Gate Trigger (Igt) (Maximum) 200mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 7600A, 8000A
Current - Hold (Ih) (Maximum) 600mA
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Chassis Mount
Package 3-MAGN-A-PAK
Win Source Part Number 778483-VSKLF200-04HK
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VSKLF200-04HK CAD Model

Description

The VSKLF200-04HK is a series connection SCR/Diode from Vishay Semiconductor Diodes Division.

  • Voltage Off State: 400V
  • Non-Repetitive Surge Current: 7600A, 8000A @ 50, 60Hz (Itsm)
  • Components: One SCR and one diode
  • Current On State (It (RMS)): 444A
  • Voltage Gate Trigger (Vgt): 3V
  • Current Gate Trigger (Igt): 200mA
  • Maximum Current Hold (Ih): 600mA
  • Current On State (It (AV)): 200A
  • Mounting Type: Chassis Mount
  • Package: 3-MAGN-A-PAK
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • Status: Obsolete (EOL)
