Same model may have multiple batches, images only for reference.

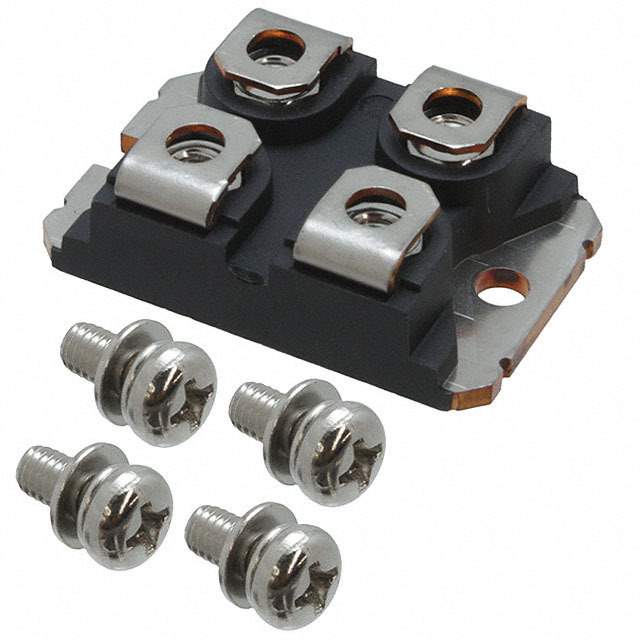

VS-UFB230FA60 Real Image
Same model may have multiple batches, images only for reference.

VS-UFB230FA60

Part No VS-UFB230FA60
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE MODULE 600V 141A SOT227 / Diode Array 2 Independent Standard 600 V 141A (DC) Chassis Mount SOT-227-4, miniBLOC
Datasheet
VS-UFB230FA60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Tube
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600 V
Current - Average Rectified (Io) (per Diode) 141A (DC)
Voltage - Forward (Vf) (Max) @ If 1.78 V @ 100 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 86 ns
Current - Reverse Leakage @ Vr 50 µA @ 600 V
Mounting Chassis Mount
Case / Package SOT-227-4, miniBLOC
Supplier Device Package SOT-227
Base Product Number UFB230
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number UFB230FA60,UFB230FA60-ND,VSUFB230FA60
Standard Package 10
Win Source Part Number 1325184-VS-UFB230FA60
Ultra Librarian 3D Model Ultra Librarian VS-UFB230FA60 CAD Model

Description

The VS-UFB230FA60 is a diode rectifier array manufactured by Vishay General Semiconductor - Diodes Division.

  • Maximum DC Reverse Voltage: 600V
  • Maximum Forward Voltage: 1.78V @ 100A
  • Recovery Speed: less than 500ns
  • Current Reverse Leakage: 50 µA @ 600V
  • Supplier Device Package: SOT-227
  • Current Average Rectified: 141A (DC)
  • Dimension: SOT-227-4, miniBLOC
  • ECCN: EAR99
  • HTSUS: 8541.10
  • ROHS3: Compliant
