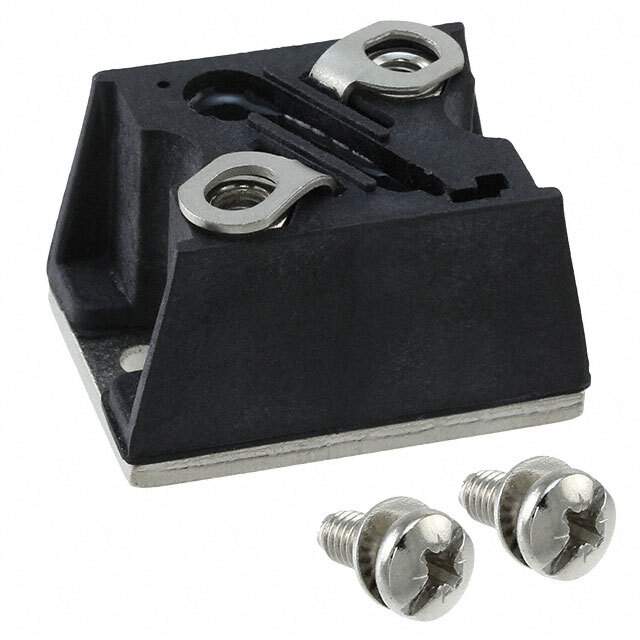

VS-T20HF220 Real Image
Same model may have multiple batches, images only for reference.

VS-T20HF220

Part No VS-T20HF220
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 2.2KV 20A D-55 / Large creepage distances
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 2200V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Maximum) at If 1.5V at 60A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage at Vr 18mA at 2200V
Mounting Style Chassis Mount
Manufacturer Package D-55
Supplier Device Package D-55
Operating Temperature - Junction -40°C ~ 150°C
Manufacturer Pack Quantity 10
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806858-VS-T20HF220
Ultra Librarian 3D Model Ultra Librarian VS-T20HF220 CAD Model

Description

The VS-T20HF220 is a chassis mount standard diode type electronic component that is manufactured by Vishay Semiconductor Diodes Division.

  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Package: D-55
  • Win Source Part Number: 806858-VS-T20HF220
  • Reverse Voltage: 2200V
  • Forward Voltage: 1.5V @ 60A
