Same model may have multiple batches, images only for reference.

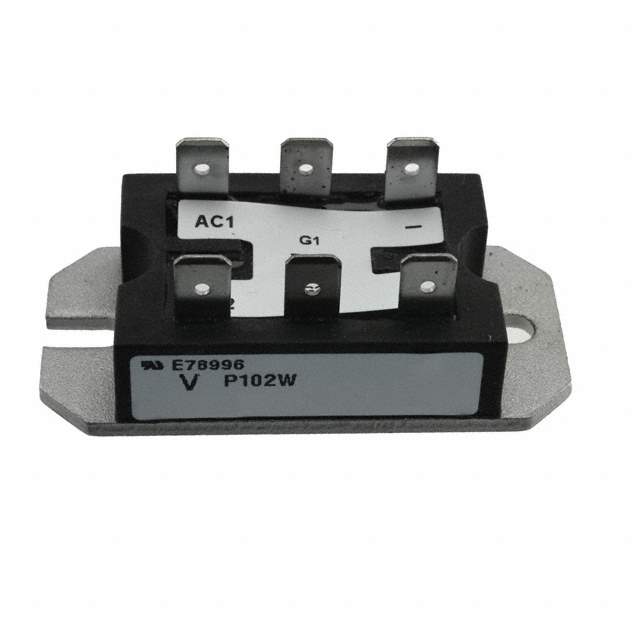

VS-P102W Real Image
Same model may have multiple batches, images only for reference.

VS-P102W

Part No VS-P102W
Manufacturer Vishay
Catalog TVS - Thyristors
Description SCR HY-BRIDGE 600V 25A PACE-PAK  /  SCR Module 600 V Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount 8-PACE-PAK
Datasheet
VS-P102W Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Structure Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 600 V
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 60 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 357A, 375A
Current - Hold (Ih) (Max) 130 mA
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case 8-PACE-PAK
Base Product Number P102
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names VSP102W-ND,VS-P102W-ND,P102W,VSP102W
Standard Package 10
Win Source Part Number 1230251-VS-P102W
Ultra Librarian 3D Model Ultra Librarian VS-P102W CAD Model

Description

The VS-P102W is a thyristor module from Vishay that is used in discrete semiconductor products.

  • Product Category: Thyristor Module
  • Application: Discrete Semiconductor Products
  • Standard Package: 10
  • Current Hold: 130 mA
  • Voltage Off State: 600 V
  • Voltage Gate Trigger: 2 V
  • Package or Case: 8-PACE-PAK
  • Temperature Range: -40°C to 125°C
