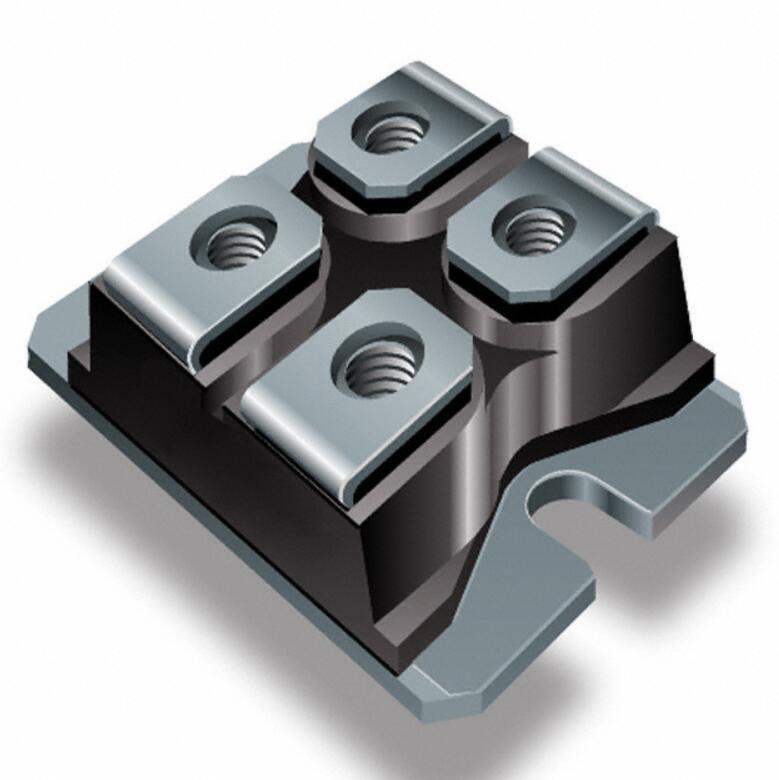

Same model may have multiple batches, images only for reference.
VS-GT180DA120U Vishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

VS-GT180DA120U

Part No VS-GT180DA120U
Manufacturer Vishay
Catalog TRANSISTORS
Description IGBT MOD 1200V 281A 1087W SOT227
Datasheet
VS-GT180DA120U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202320-VS-GT180DA120U
Win Source Part Number Cross
Manufacturer Vishay General Semiconductor - Diodes Division
Category Discrete Semiconductor Products Transistors IGBTs IGBT Modules
Series HEXFRED®
Package Tube
Product Status Active
IGBT Type Trench Field Stop
Configuration Single
Current - Collector (Ic) (Max) 281 A
Vce(on) (Max) @ Vge, Ic 2.05V @ 15V, 100A
Ultra Librarian 3D Model Ultra Librarian VS-GT180DA120U CAD Model

Description

The Vishay General Semiconductor - Diodes Division HEXFRED® series IGBT module is a single configuration module with a trench field stop IGBT type.

  • Maximum Collector Current: 281 A
  • Maximum Collector-Emitter Voltage: 2.05V @ 15V, 100A
  • Series: HEXFRED®
  • Package: tube packaging
  • Manufacturer: Vishay General Semiconductor - Diodes Division
