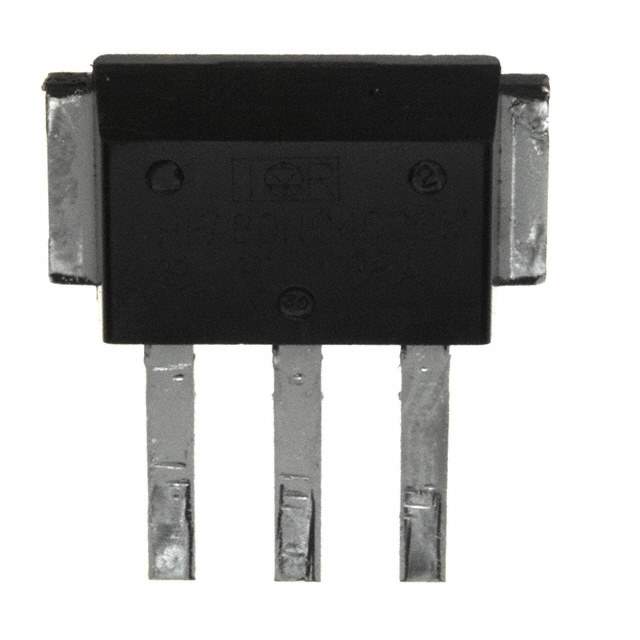

VS-81CNQ035ASMPBF Real Image
Same model may have multiple batches, images only for reference.

VS-81CNQ035ASMPBF

Part No VS-81CNQ035ASMPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 35V 40A D618SM
Datasheet
VS-81CNQ035ASMPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 35V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 600mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 5mA @ 35V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package D-61-8-SM
Win Source Part Number 140765-VS-81CNQ035ASMPBF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-81CNQ035ASMPBF CAD Model

Description

The Vishay VS-81CNQ035ASMPBF is a Schottky diode that comes in a D-61-8-SM package.

  • Package: D-61-8-SM
  • Maximum DC Reverse Voltage: 35V
  • Maximum Forward Voltage: 600mV @ 40A
  • Reverse Leakage Current: 5mA @ 35V
  • Category: Discrete Semiconductor Products
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Configuration: Pair of common cathode diodes
  • Operating Temperature Range: -55°C to 175°C
