The XC4VFX20-10FF672C is a Virtex-4 FX series Field Programmable Gate Array (FPGA) from Xilinx. This FPGA is designed for embedded processing and signal processing applications. It combines a powerful PowerPC processor with advanced FPGA fabric to provide a flexible and high-performance solution for a variety of demanding applications.

Applications

• Aerospace and Defense: Radar systems, electronic warfare, and image processing.
• Industrial Automation: Machine vision, motor control, and robotics.
• Automotive: Advanced driver-assistance systems (ADAS), infotainment, and powertrain control.
• Medical Imaging: Computed tomography (CT), magnetic resonance imaging (MRI), and ultrasound.
• Communications: Wireless base stations, network processing, and video conferencing.

Features

• PowerPC Processor: Integrated 405 PowerPC processor core for embedded processing tasks.
• FPGA Fabric: Advanced FPGA fabric with high-speed logic and routing resources for custom hardware acceleration.
• DSP Slices: Dedicated DSP slices for high-performance signal processing.
• Memory Interfaces: Supports various memory interfaces, including DDR2 and QDRII, for high-bandwidth data access.
• High-Speed I/O: Provides high-speed I/O interfaces, such as Gigabit Ethernet and PCI Express, for connectivity.
• Advanced Clock Management: Features advanced clock management capabilities for precise timing control.
• Security Features: Incorporates security features, such as bitstream encryption, to protect against unauthorized access.

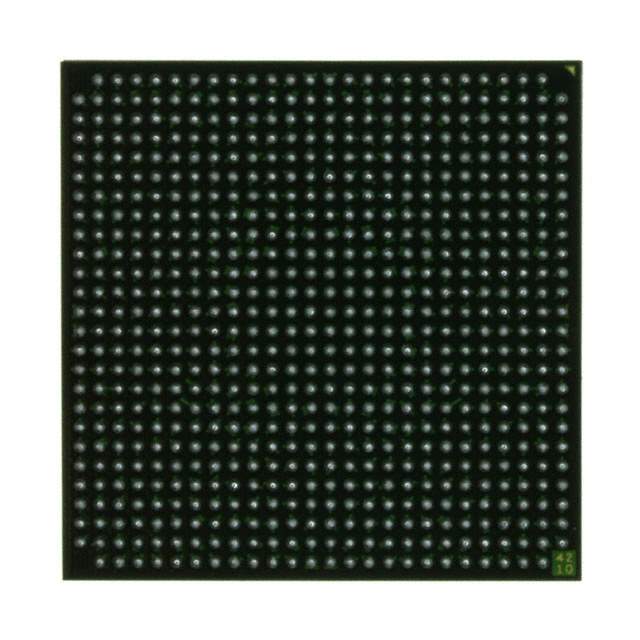

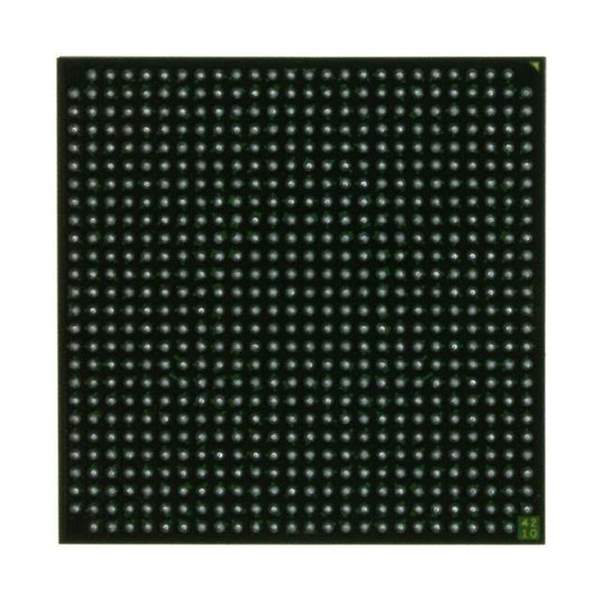

• Package: FF672 package (672-pin Fine-Pitch Ball Grid Array)
• Speed Grade: -10 speed grade indicates the device's performance level.

Benefits

• High Performance: Combines a PowerPC processor with FPGA fabric for high-performance embedded processing and hardware acceleration.
• Flexibility: Allows for custom hardware implementation to meet specific application requirements.
• Integration: Integrates multiple functions into a single device, reducing system size and cost.
• Real-Time Processing: Enables real-time processing of data with low latency.
• Power Efficiency: Optimized for power efficiency, making it suitable for battery-powered applications.
• Security: Provides security features to protect against unauthorized access and tampering.
• Time-to-Market: Speeds up time-to-market with a flexible and customizable platform.

Additional Details

The XC4VFX20-10FF672C is fabricated using a 90nm process technology. It supports a wide range of industry-standard interfaces and protocols. The Virtex-4 FX family is known for its versatility and is a popular choice for designers who need a combination of processing power and hardware flexibility.

Note: Refer to the Xilinx documentation for specific technical details, including power consumption, operating temperature range, and available IP cores.
