VS-80CPH03-F3 Vishay
Same model may have multiple batches, images only for reference.

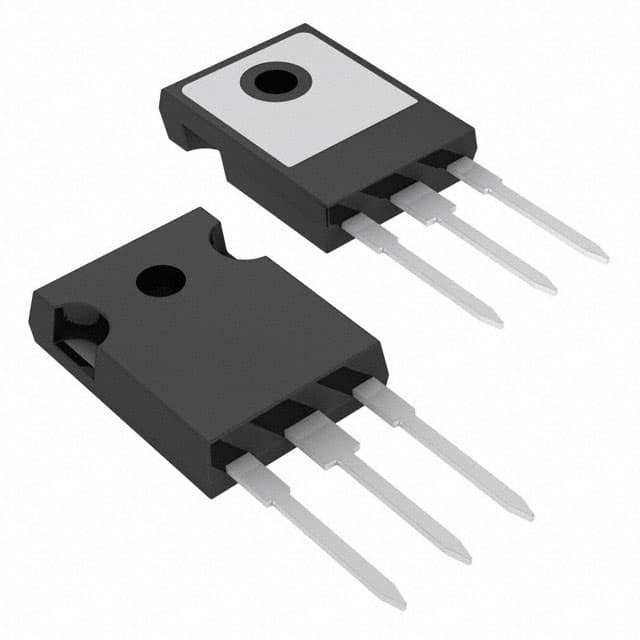

VS-80CPH03-F3

Part No VS-80CPH03-F3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Datasheet
VS-80CPH03-F3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Vishay General Semiconductor - Diodes Division
Package Tube
Product Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300 V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 40 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 35 ns
Current - Reverse Leakage @ Vr 10 µA @ 300 V
Operating Temperature - Junction -65°C ~ 175°C
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package TO-247AC
Base Product Number 80CPH03
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1314539-VS-80CPH03-F3
Ultra Librarian 3D Model Ultra Librarian VS-80CPH03-F3 CAD Model

Description

The VS-80CPH03-F3 is a standard diode rectifier array from Vishay with a voltage rating of 300V DC reverse and forward voltage of 1.25V @ a current of 40A.

  • Recovery Speed: Fast, less than 500ns
  • Reverse Recovery Time: 35ns
  • Diode Configuration: 1 pair common cathode
  • Average Rectified Current per Diode: 20A
  • Application: Circuit Protection
  • Temperature Range: -65°C to 175°C
  • Package: TO-247-3
  • Packaging: Tape and Box
  • Status: Obsolete
