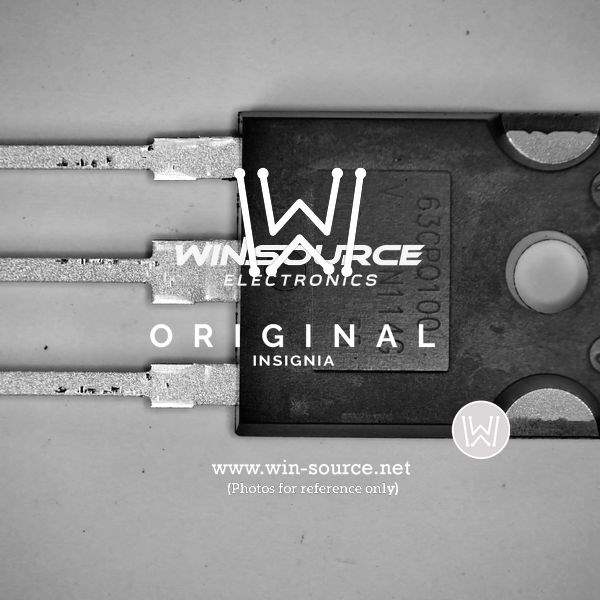

VS-63CPQ100-N3 Real Image VS-63CPQ100-N3 Real Image
Same model may have multiple batches, images only for reference.
VS-63CPQ100-N3 Real Image VS-63CPQ100-N3 Real Image
VS-63CPQ100-N3 Real Image VS-63CPQ100-N3 Real Image
Same model may have multiple batches, images only for reference.

VS-63CPQ100-N3

Part No VS-63CPQ100-N3
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 100V TO247
Datasheet
VS-63CPQ100-N3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 45 Weeks
Features Diode Array 1 Pair Common Cathode Schottky 100 V 30A Through Hole TO-247-3
Manufacturer Vishay
Package Tube
Speed Fast Recovery =< 500ns, > 200mA (Io)
Mounting Through Hole
Package TO-247-3
Case / Package TO-247AC
Family Name 63CPQ100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 25
Popularity High
Supply and Demand Status Balance
Win Source Part Number 938822-VS-63CPQ100-N3
Ultra Librarian 3D Model Ultra Librarian VS-63CPQ100-N3 CAD Model

Description

The Vishay VS-63CPQ100-N3 is a diode array with a common cathode Schottky configuration.

  • Maximum Voltage Rating: 100 V
  • Maximum Current Rating: 30 A
  • Package: TO-247-3
  • Recovery Time: < 500 ns
  • Forward Voltage Drop: 0.76 V
