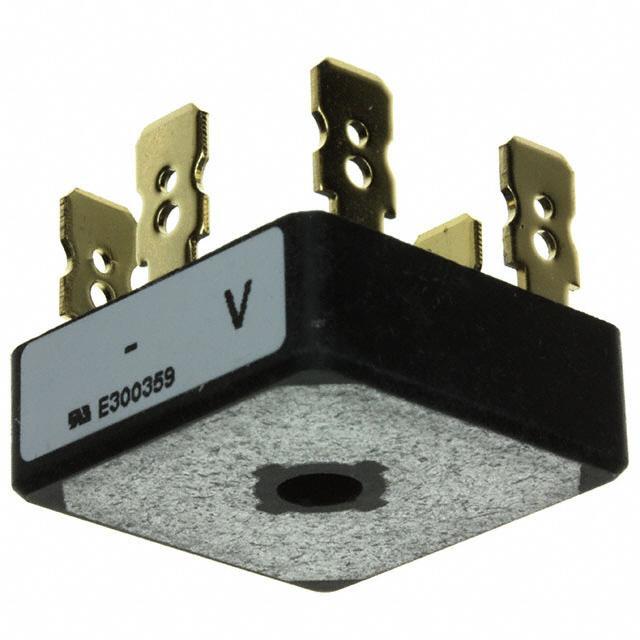

VS-36MT120 Vishay
Same model may have multiple batches, images only for reference.

VS-36MT120

Part No VS-36MT120
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECT BRIDGE 3-PHA 1200V 35A D-63
Datasheet
VS-36MT120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1200V
Current - Average Rectified (Io) 35A
Current - Reverse Leakage @ Vr 10μA @ 1200V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 5-Square, D-63
Manufacturer Package D-63
Win Source Part Number 763411-VS-36MT120
Popularity Medium
Supply and Demand Status Balance
Family Name VS-36MT120
Introduction Date February 16, 2014
ECCN EAR99
Country of Origin India
Estimated EOL Date 2037
Ultra Librarian 3D Model Ultra Librarian VS-36MT120 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-36MT120 is a three-phase diode.

  • Current Rating: 35A
  • Voltage Rating: 1200V peak reverse
  • Category: Discrete semiconductor products
  • Package: D-63
  • Operating Temperature Range: -55°C to 150°C (TJ)
