Same model may have multiple batches, images only for reference.

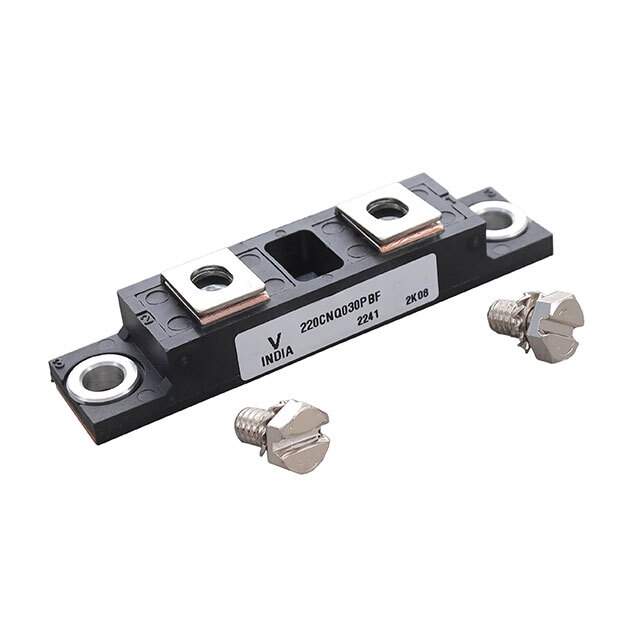

VS-220CNQ030PBF Real Image
Same model may have multiple batches, images only for reference.

VS-220CNQ030PBF

Part No VS-220CNQ030PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE SCHOTTKY 30V 110A TO244
Datasheet
VS-220CNQ030PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 110A
Voltage - Forward (Vf) (Maximum) @ If 490mV @ 110A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 10mA @ 30V
Operating Temperature - Junction -55°C ~ 175°C
Mounting SMD
Package TO-244AB
Manufacturer Package TO-244
Win Source Part Number 761824-VS-220CNQ030PBF
Popularity Medium
Supply and Demand Status Limited
Family Name VS-220CNQ030
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-220CNQ030PBF CAD Model

Description

The Vishay Semiconductor Diodes Division VS-220CNQ030PBF Schottky diode.

  • Packaging: Bulk
  • Current Reverse Leakage: 10mA @ 30V
  • Operating Temperature Range: -55°C ~ 175°C
  • Diode Configuration: 1 Pair Common Cathode
  • Average Rectified Current: 110A per diode
  • Mounting: SMD
  • Package: TO-244AB
  • ECCN: EAR99
  • EOL Date: Estimated 2026
  • Supply and Demand: Limited
  • Speed: Fast recovery = 200mA (Io)
  • Alternative Parts: 220CNQ030, 444CMQ035-G440CNQ030
