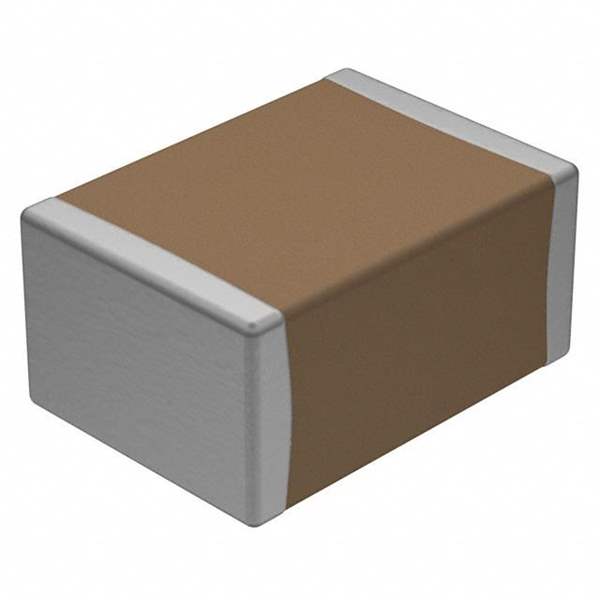

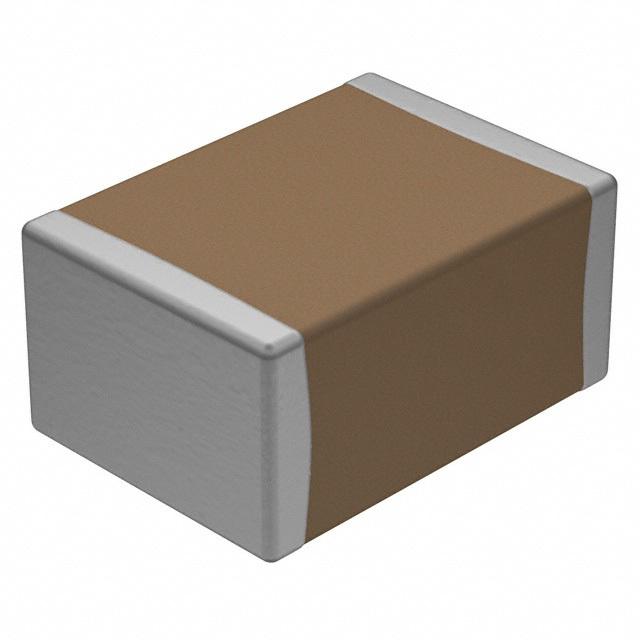

The VJ2220Y104MXEAT is a surface-mount multilayer ceramic capacitor (MLCC) from Vishay. It is designed for general-purpose applications requiring stable capacitance and reliable performance.

Applications:

• Bypass and decoupling in power supplies
• Filtering in electronic circuits
• High-frequency applications
• Timing circuits
• General-purpose applications requiring stable capacitance

Features:

• Capacitance value of 0.1µF (100nF)
• X7R dielectric material
• Voltage rating of 500V
• EIA case size 2220
• Surface mount technology (SMT)
• RoHS compliant

Benefits:

• Stable capacitance over temperature variations due to the X7R dielectric
• High voltage rating suitable for demanding applications
• Small footprint saves board space
• Reliable performance in various environments
• Optimized for automated assembly

Additional Details:

The X7R dielectric ensures a capacitance change of no more than ±15% over the operating temperature range of -55°C to +125°C. The 2220 case size indicates the dimensions of the capacitor are approximately 0.22 inches in length and 0.20 inches in width. This capacitor is designed to withstand the high temperatures encountered during reflow soldering. The termination finish is typically a nickel barrier with tin plating.

This MLCC offers a combination of stable capacitance, a high voltage rating, and small size, making it ideal for applications where reliability and performance are critical. It is commonly used in power supplies, filtering circuits, and other high-frequency applications.
