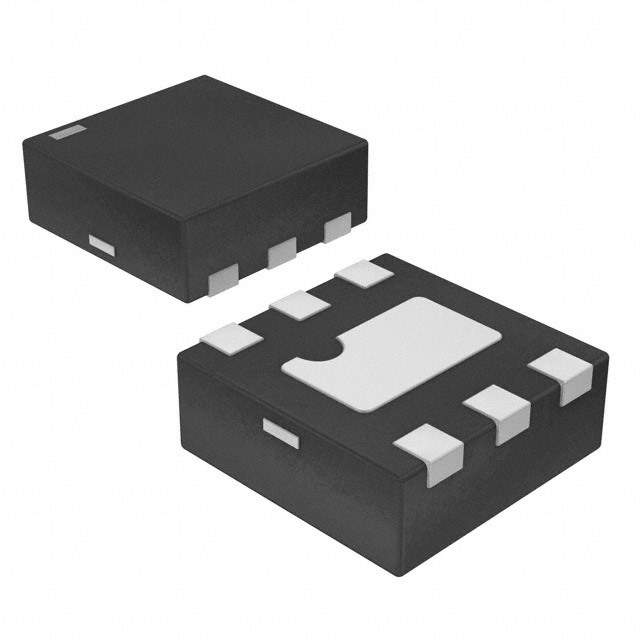

Same model may have multiple batches, images only for reference.

VESD05A6-HA3-GS08

Name: VESD05A6-HA3-GS08
Brand: Vishay
SKU: 534214
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	VESD05A6-HA3-GS08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 12VC LLP757A
Datasheet	VESD05A6-HA3-GS08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Vishay
Packaging	Reel - TR
Status	Obsolete(EOL)
Type	Zener
Unidirectional Channels	6
STAND-OFF Voltage (Vwm)	5V (Max)
Minimum Breakdown Voltage	6V
Max Clamping Voltage	12V
Peak Pulse Current(Ippm)	5A (8/20μs)
Power Dissipation - Pd	60W
Applications	General Purpose
Capacitance @ Frequency	40pF @ 1MHz
Temperature Range - Operating	-40°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	LLP75-7A
Win Source Part Number	1117002-VESD05A6-HA3-GS08
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian VESD05A6-HA3-GS08 CAD Model

Alternative Products

Description

The Vishay VESD05A6-HA3-GS08 is a unidirectional zener diode that is designed for general purpose applications.

Manufacturer: Vishay
Type: Unidirectional Zener Diode
Application: General Purpose
Mounting: SMD (SMT)
Channels: Six
Capacitance: 40pF @ 1MHz
Packaging: Reel
Status: Obsolete (EOL)
Operating Temperature Range: -40°C to 125°C (TJ)
Case/Package: LLP75-7A
Stand-off Voltage (Vwm): 5V (Max)
Minimum Breakdown Voltage: 6V
Maximum Clamping Voltage: 12V
Peak Pulse Current (Ippm): 5A (8/20μs)
Power Dissipation (Pd): 60W
Supply and Demand Status: Sufficient
