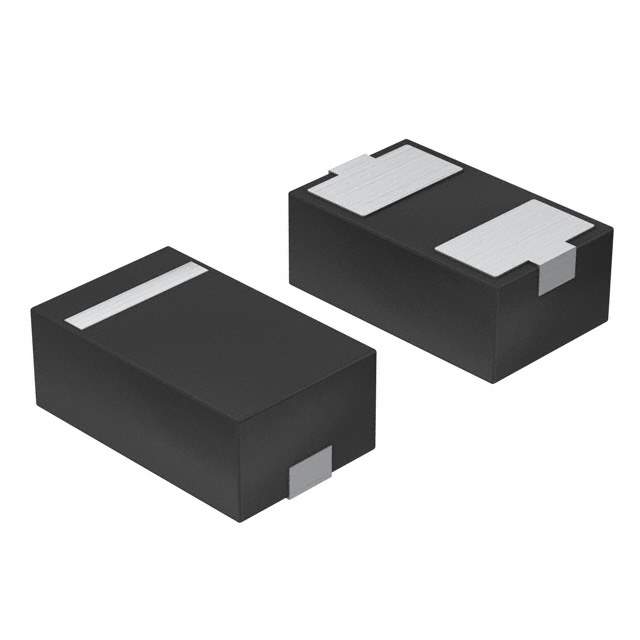

VESD03A1B-HD1-GS08

Name: VESD03A1B-HD1-GS08
Brand: Vishay
SKU: 397836
Availability: InStock
Rating: 4.85 (119 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VESD03A1B-HD1-GS08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 3.3VWM 9VC LLP10062L
Datasheet	VESD03A1B-HD1-GS08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	1
STAND-OFF Voltage (Vwm)	3.3V (Max)
Minimum Breakdown Voltage	5V
Max Clamping Voltage	9V
Peak Pulse Current(Ippm)	3.5A (8/20μs)
Power Dissipation - Pd	31W
Applications	General Purpose
Capacitance @ Frequency	25pF @ 1MHz
Temperature Range - Operating	-40°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	LLP1006-2L
Win Source Part Number	036253-VESD03A1B-HD1-GS08
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian VESD03A1B-HD1-GS08 CAD Model

Description

The Vishay VESD03A1B-HD1-GS08 is a unidirectional zener diode designed for general purpose applications.

Manufacturer: Vishay
Package: LLP1006-2L
Mounting Type: SMD (SMT)
STAND-OFF Voltage (Vwm): 3.3V (Max)
Minimum Breakdown Voltage: 5V
Max Clamping Voltage: 9V
Peak Pulse Current(Ippm): 3.5A (8/20μs)
Power Dissipation - Pd: 31W
Capacitance @ Frequency: 25pF @ 1MHz
Operating Temperature Range: -40°C to 125°C (TJ)
Popularity: High
Supply and Demand Status: Balanced
Risk: Fake products in the open market
