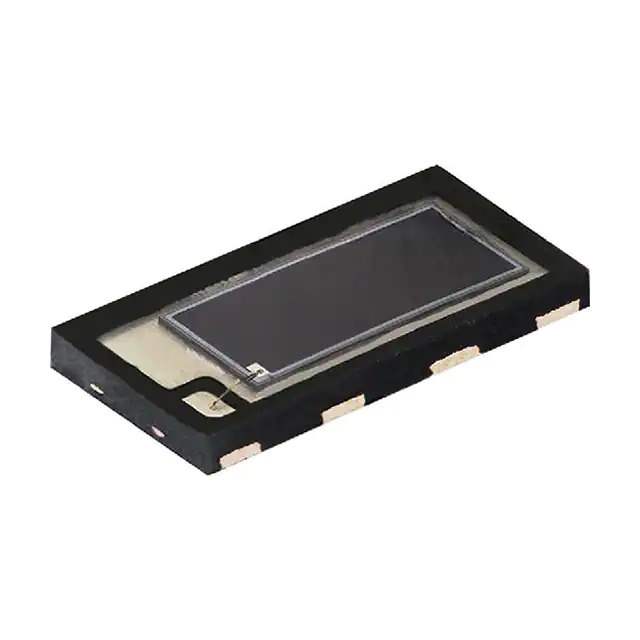

VEMD8080 Real Image
Same model may have multiple batches, images only for reference.

VEMD8080

Part No VEMD8080
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description PHOTODIODE 780 TO 1050 NM / Photodiode 850nm 70ns 130° 8-SMD, No Lead
Datasheet
VEMD8080 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Photodiodes
Mfr Vishay
Package Tape & Reel
Product Status Active
Wavelength 850nm
Spectral Range 350nm ~ 1100nm
Diode Type PIN
Response Time 70ns
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Dark (Typ) 10nA (Max)
Active Area 4.5mm²
Viewing Angle 130°
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-SMD, No Lead
Base Product Number VEMD8080
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 902524-VEMD8080
Ultra Librarian 3D Model Ultra Librarian VEMD8080 CAD Model

Description

The VEMD8080 is a photodiode sensor designed for optical sensing applications.

  • Type: PIN Diode
  • Response Time: 70ns
  • Reverse Voltage (Vr): Up to 20V
  • Viewing Angle: 130°
  • Spectral Range: 350nm to 1100nm
  • Package: 8-SMD, no lead
  • Active Area: 4.5mm²
  • Operating Temperature Range: -40°C to 85°C
