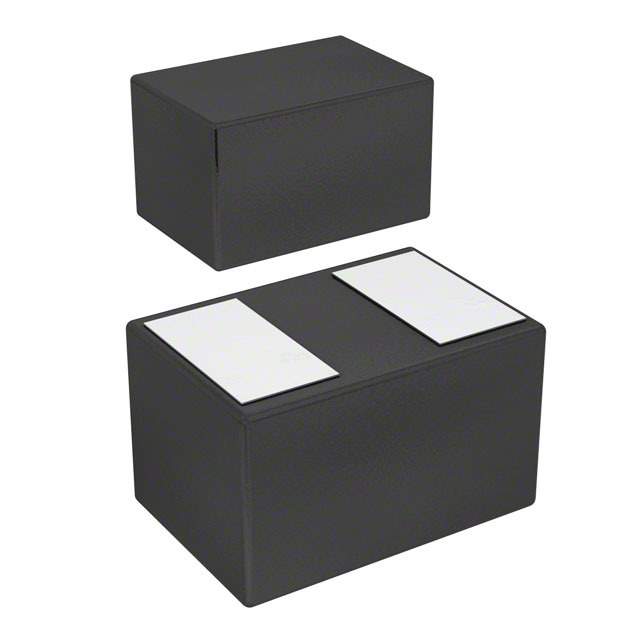

VBUS05B1-SD0-G4-08

Name: VBUS05B1-SD0-G4-08
Brand: Vishay
SKU: 1201580
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VBUS05B1-SD0-G4-08
Manufacturer	Vishay
Catalog	TVS - Diodes
Description	TVS DIODE 5.5VWM 18VC CLP0603 / 18V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount CLP0603
Datasheet	VBUS05B1-SD0-G4-08 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Vishay General Semiconductor - Diodes Division
Package	Tape & Reel
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	5.5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	18V
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)
Power - Peak Pulse	45W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	0.29pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	0201 (0603 Metric)
Supplier Device Package	CLP0603
Base Product Number	VBUS05
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	VBUS05B1-SD0-G4-08GIDKR,VBUS05B1-SD0-G4-08GICT,VBUS05B1-SD0-G4-08GITR
Standard Package	15,000
Win Source Part Number	1201580-VBUS05B1-SD0-G4-08
Ultra Librarian 3D Model	Ultra Librarian VBUS05B1-SD0-G4-08 CAD Model

Description

The Vishay General Semiconductor - Diodes Division Zener diode VBUS05B1-SD0-G4-08 is a bidirectional component that is designed for general-purpose applications.

Voltage Reverse Standoff: 5.5V (max)
Voltage Breakdown: 6V
Voltage Clamping: 18V @ Ipp
Power Peak Pulse: 45W
Capacitance: 0.29pF @ 1MHz
Peak Pulse Current: 2.5A (10/1000µs)
Package/Case: SMD (SMT), 0201 (0603 Metric)
Operating Temperature Range: -55°C to 150°C (TJ)
Supplier Device Package: CLP0603
