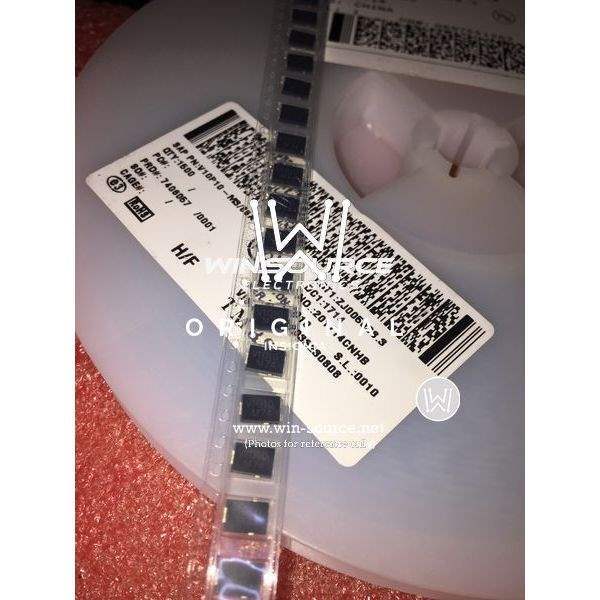

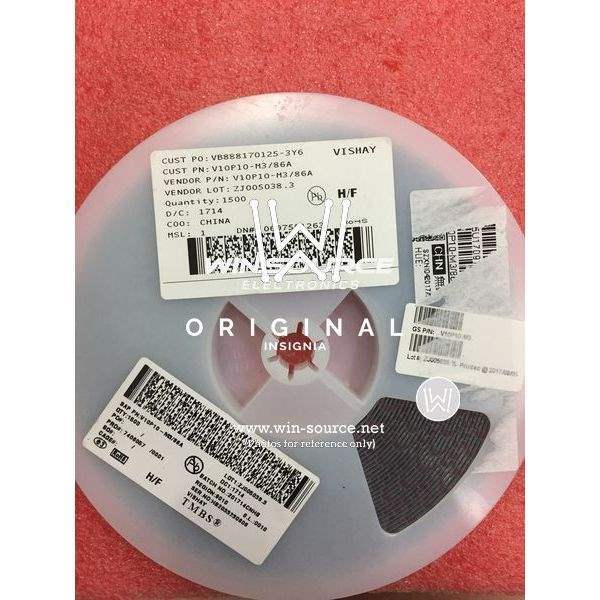

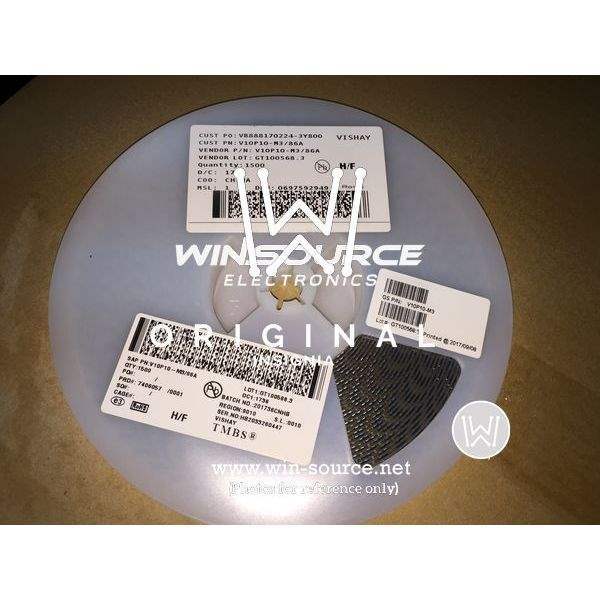

V10P10-M3/86A Vishay V10P10-M3/86A Real Image V10P10-M3/86A real image 2 V10P10-M3/86A label picture V10P10-M3/86A label picture 2 V10P10-M3/86A label picture 3
Same model may have multiple batches, images only for reference.
V10P10-M3/86A Vishay V10P10-M3/86A Real Image V10P10-M3/86A real image 2 V10P10-M3/86A label picture V10P10-M3/86A label picture 2 V10P10-M3/86A label picture 3
V10P10-M3/86A Vishay V10P10-M3/86A Real Image V10P10-M3/86A real image 2 V10P10-M3/86A label picture V10P10-M3/86A label picture 2 V10P10-M3/86A label picture 3
Same model may have multiple batches, images only for reference.

V10P10-M3/86A

Part No V10P10-M3/86A
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Schottky 100V 10A 3-Pin(2+Tab) SMPC T/R / DIODE SCHOTTKY 100V 10A TO277A
Datasheet
V10P10-M3/86A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 680mV @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 150μA @ 100V
Mounting SMD (SMT)
Case / Package TO-277A (SMPC)
Operating Temperature - Junction -40°C to 150°C
Win Source Part Number 036191-V10P10-M3/86A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Power Management, Safety
Family Name V10P10
Introduction Date September 17, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian V10P10-M3/86A CAD Model

Description

The Vishay V10P10-M3/86A is a Schottky diode with a maximum reverse voltage of 100V and an average rectified current of 10A.

  • Maximum Reverse Voltage: 100V
  • Average Rectified Current: 10A
  • Voltage Forward: 680mV @ 10A
  • Current Reverse Leakage: 150μA @ 100V
  • Operating Temperature: -40°C to 150°C
  • Package: TO-277A (SMPC)
  • Family: V10P10 family
  • Ideal for: use in power management and safety applications
