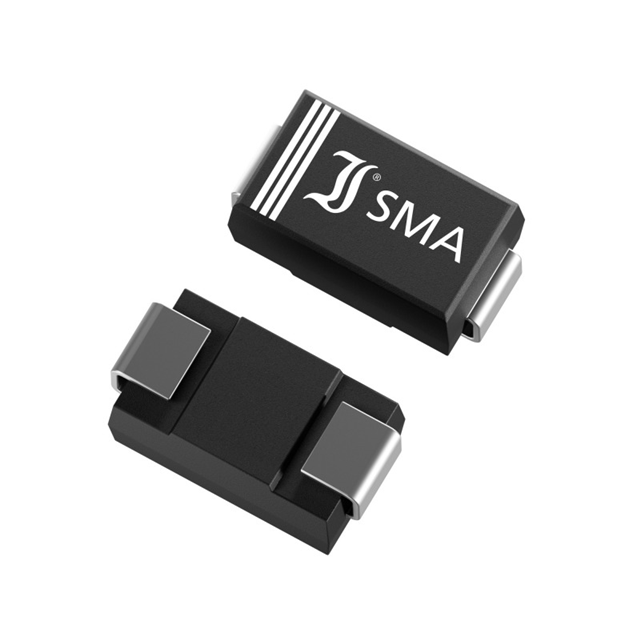

US1D Real Image
Same model may have multiple batches, images only for reference.

US1D

Part No US1D
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description SURFACE MOUNT ULTRAFAST RECTIFIER(VOLTAGE - 5 to 8 Volts CURRENT - 1. Ampere)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay
Operating Temperature Classification Automotive
Rev Recov Time 5(ns)
Rev Curr 5(uA)
Mounting Surface Mount
Forward Voltage 1(V)
Rad Hardened No
Peak Rep Rev Volt 2(V)
Pin Count 2
Peak Non-Repetitive Surge Current 3(A)
Configuration Single
Operating Temp Range -5C to 15C
Rectifier Type Switching Diode
Win Source Part Number 095388-US1D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1V @ 1A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 5µA @ 200V
Grade -
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package DO-214AC (SMA)
Operating Temperature - Junction -50°C ~ 150°C
Ultra Librarian 3D Model Ultra Librarian US1D CAD Model

Description

The US1D is a switching diode from Vishay that comes in a surface-mount package.

  • Configuration: single configuration rectifier type diode
  • Peak Reverse Voltage: 2V
  • Forward Voltage: 1V
  • Peak Non-Repetitive Surge Current: 3A
  • Reverse Current: 5μA @ 2V
  • Usage: commonly used part
  • Popularity: high popularity in the open market
  • Supply and Demand Status: sufficient
  • Suitable for: automotive applications
  • Operating Temperature Range: -5C to 15C
  • Rad Hardened: not rad hardened
